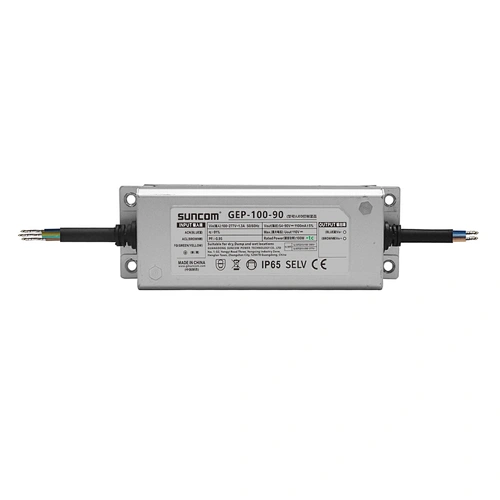

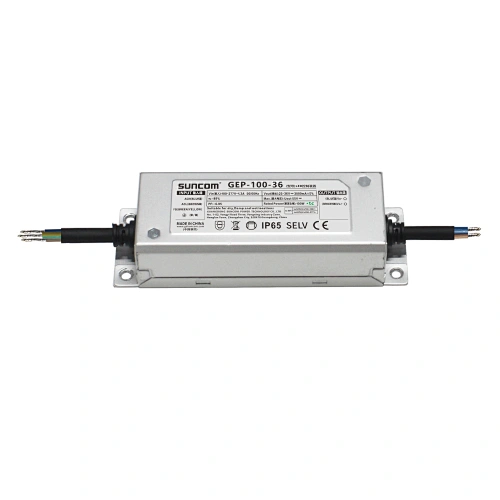

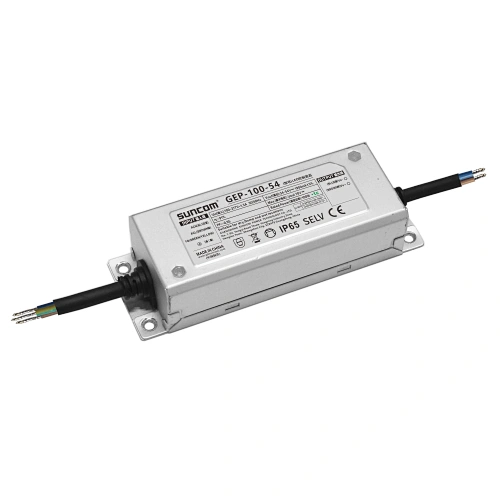

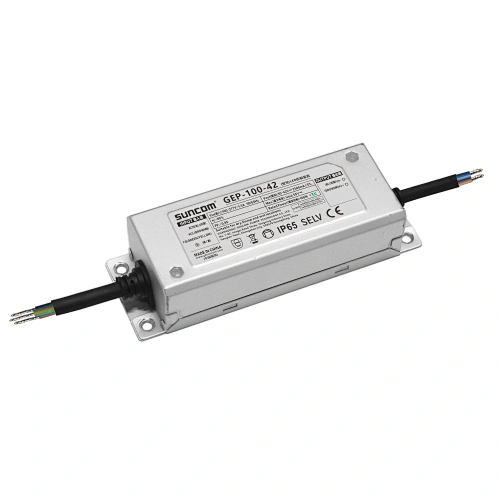

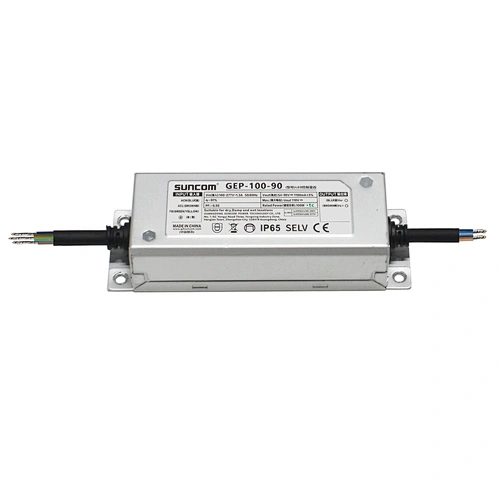

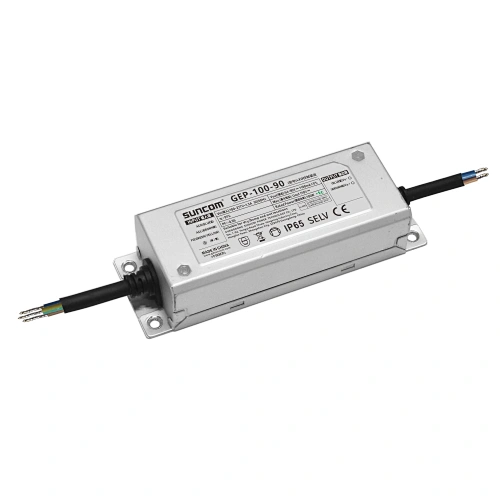

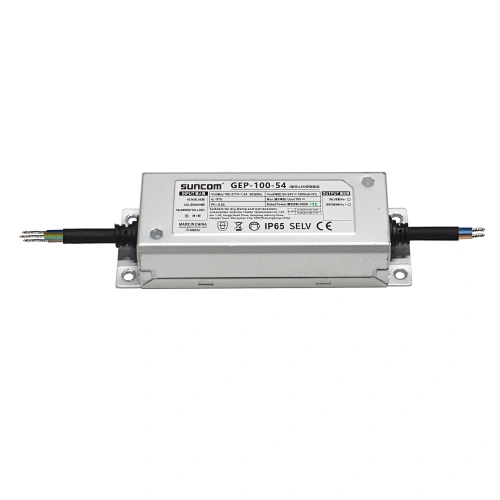

GEP 100W LED Driver

This product is a constant current 100 watt LED power supply, specially designed for LED lights, with low harmonic (< 15%), high power factor(>0.95). Output current can be flexibly adjusted according to the led lamp voltage. Built-in surge protection, output short-circuit protection over-temperature protection, greatly improve the safety and reliability of the product.

Descrição do produto

GEP 100 Watt Driver Parameter

Input voltage range: 100-277V (Wide input voltage)

Output voltage: 25-36V/30-42V/34-54V/54-90V

Rated power: 100W

THD＜15%/PF＞0.95

Features

Class I type for insulation Isolated, constant current output , with power limitation for control mode Efficiency: ≥89%, measured at full load and 230Vac input

Surge protection: 4/6KV

IP grade: IP65

Protections: UVP/SCP/OTP/OVP

Products certifications: CE

Working temperature: -40 ~ 65℃ (25℃ Typ.)

Maximum case temperature: 90℃

Storage temperature: -40 ~ 85℃ (25℃ Typ.)

Warranty: 5 years

Application of 100 Watt LED Power Supply Street lighting, highbay lighting, stadium lighting, flood lighting and other indoor or outdoor lighting

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)
GEP-100-36	100W	100-277V	25-36V	3000mA±5%	1424933mm	<15%	>0.95
GEP-100-42	100W	100-277V	30-42V	2500mA±5%	1424933mm	<15%	>0.95
GEP-100-54	100W	100-277V	34-54V	1900mA±5%	1424933mm	<15%	>0.95
GEP-100-90	100W	100-277V	54-90V	1100mA±5%	1424933mm	<15%	>0.95

GEP-100W-XXX
