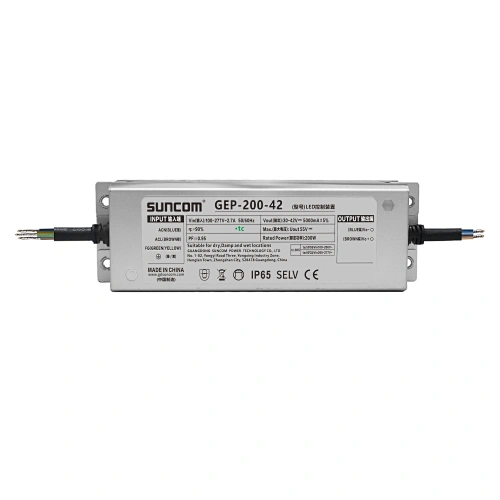

GEP 200W LED Driver
GEP 200W LED Driver - Image 2
GEP 200W LED Driver - Image 3

GEP 200W LED Driver

  • Modelo NO.
  • GEP-200-36,GEP-200-42, GEP-200-54, GEP-200-90
This product is a constant current drive power supply, specially designed for LED lights, with low harmonic (< 15%), high power factor(>0.95). Output current can be flexibly adjusted according to the led lamp voltage. Built-in surge protection, output short-circuit protection over-temperature protection, greatly improve the safety and reliability of the product.

Descrição do produto

GEP 200W High Power LED Driver Parameter
Input voltage range: 100-277V
Output voltage: 25-36V/30-42V/34-54V/54-90V
Rated power: 200W
THD＜15%/PF＞0.95
Features of GEP 200W High Power LED Driver
Class I type for insulation Isolated, constant current output , with power limitation for control mode Efficiency: ≥89%, measured at full load and 230Vac input
Surge protection: 4/6KV
IP grade: IP65
Protections: UVP/SCP/OTP/OVP
Products certifications: CE
Working temperature: -40 ~ 65℃ (25℃ Typ.)
Maximum case temperature: 90℃
Storage temperature: -40 ~ 85℃ (25℃ Typ.)
Working Humidity: 20％ RH ~ 90％ RH Storage Humidity: 10％ RH ~ 90％ RH
Warranty: 5 years
Application of Waterproof LED Driver  Street lighting, highbay lighting, stadium lighting, flood lighting and other indoor or outdoor lighting
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)
GEP-200-36 200W 100-277V 25-36V 6000mA±5% 186*60*37mm <15% >0,95
GEP-200-42 200W 100-277V 30-42V 5000mA±5% 186*60*37mm <15% >0,95
GEP-200-54 200W 100-277V 34-54V 3700mA±5% 186*60*37mm <15% >0,95
GEP-200-90 200W 100-277V 54-90V 2200mA±5% 186*60*37mm <15% >0,95
