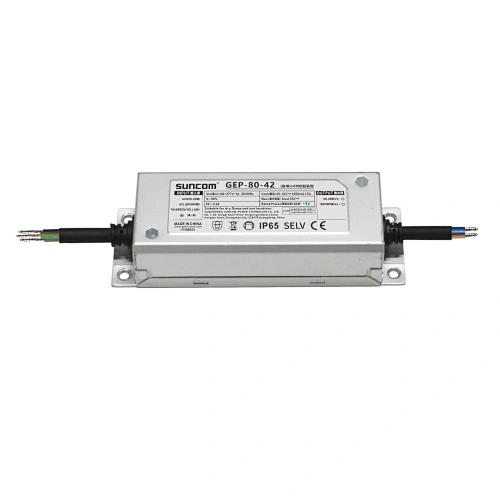

GEP 80W LED Driver
GEP 80W LED Driver - Image 2
GEP 80W LED Driver - Image 3

GEP 80W LED Driver

  • Modelo NO.
  • GEP-80-42
The GEP series is a highly efficient power supply with universal AC input voltage and a compact design. With built-in over-voltage protection and short circuit protection, it ensures safer lighting and eliminates the risk of damage to LED lights. It offers high power factor and low harmonic distortion, which makes it an ideal choice for high-end LED lighting applications.

Descrição do produto

GEP LED Driver 80W Parameter
Input voltage range: 100-277V
Output voltage: 25-42V
Rated power: 80W
THD＜15%/PF＞0.95
Features
Class I type for insulation Isolated, constant current output , with power limitation for control mode Efficiency: ≥90% （Typ.）
Surge protection: 4/6KV
IP grade: IP65
Protections: UVP/SCP/OTP/OVP
Products certifications: CE
Working temperature: -40 ~ 65℃ (25℃ Typ.)
Maximum case temperature:  90℃
Storage temperature: -40 ~ 85℃ (25℃ Typ.)
Warranty: 5 years
Application of GEP LED Driver 80W
Street lighting, highbay lighting, stadium lighting, flood lighting and other indoor or outdoor lighting
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)
GEP-80-42 80W 100-277V 25-42V 2200mA±5% 142*49*33mm <15% >0,95
