GPE 36W LED Driver

Boost your LED lighting efficiency with the GPE series LED driver. This product features a wide input voltage range and a constant current output, ensuring stable and reliable power supply to your LED lights. Its high efficiency and low ripple current also help prolong the lifespan of your LED lights. Ideal for outdoor lighting applications. Upgrade your lighting experience with the GPE series LED driver.

Descrição do produto

GPE 36W LED Driver Parameters

Rated input voltage: 100-277V

Output voltage: 68-122V/34-63V/24-42V

Rated power: 36W

PF＞0.95

Features

High PF isolated semi-aluminum waterproof LED driver

Isolation LED driver, constant current output mode LED driver

Protection: OVP/OCP /SCP /OTP

IP grade: IP65

Surge grade: 4KV

Efficiency: 90%

Working temperature: -40 ~ 65℃ Maximum case temperature: 90℃ Storage temperature: -40 ~ 85℃

Working humidity: 20％ RH ~ 90％ RH

Storage humidity: 10％ RH ~ 90％ RH

Warranty: 2 years

Application of LED Driver 36 Watt

LED driver for garden lighting, lawn lighting, flood lighting, three-proof lighting, etc.

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	Surge	PF.(Typ)
GPE-36W300-122	36W	100-277V	68-122V	300mA±5%	1063224mm	4KV	>0.95

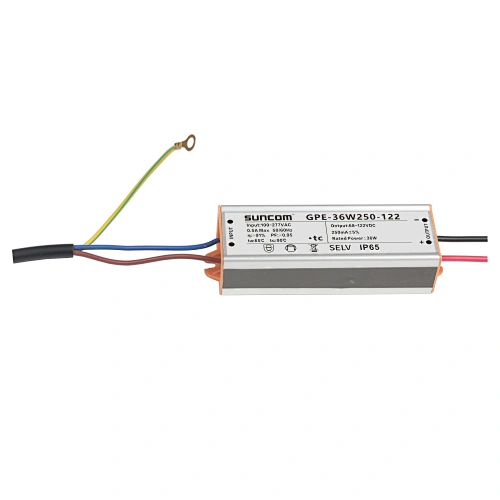

GPE-36W250-122		100-277V	68-122V	250mA±5%	1063224mm	4KV	>0.95

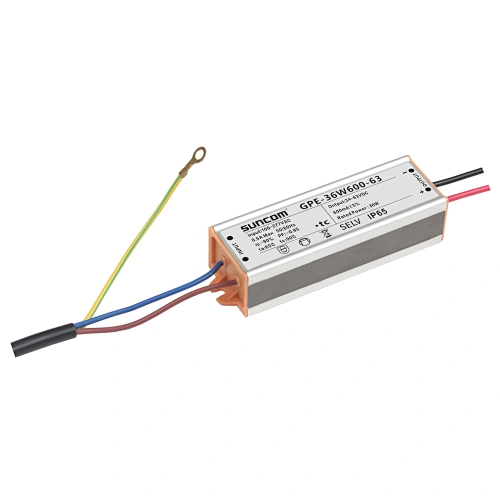

GPE-36W600-63		100-277V	34-63V	600mA±5%	1063224mm	4KV	>0.95

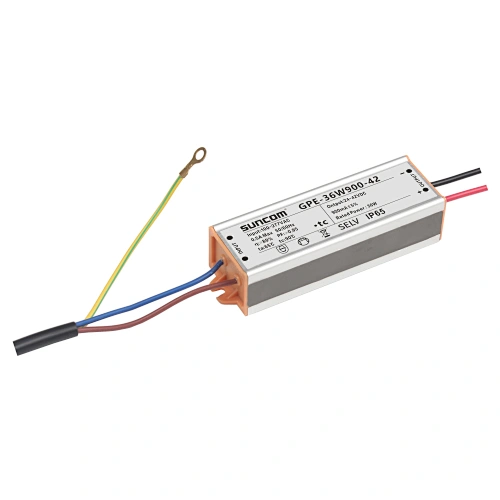

GPE-36W900-42		100-277V	24-42V	900mA±5%	1063224mm	4KV	>0.95
