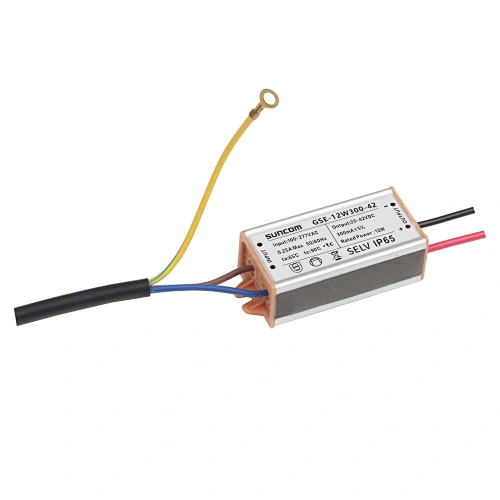

GSE 12W LED Driver

The GSE LED driver is a high-quality power supply designed for LED lighting. Its isolated design ensures that there is no risk of electric shock, making it safe for use in any setting. With a compact size and lightweight design, it can be easily installed in a variety of locations. Its high efficiency ensures that energy is not wasted, making it an environmentally friendly choice. This driver is ideal for use in residential and industrial LED lighting applications.

Descrição do produto

GSE 12W LED Driver Parameters

Rated input voltage: 100-265V

Output voltage: 21-45V/21-42V/21-40V/11-28V/11-22V/6-14V

Rated power: 12W

Max current ripple: <±10％

Features

GSE: Low PF isolated semi-aluminum waterproof LED driver

Isolation, flicker free LED driver, constant current mode output LED driver

Protection: Output OCP /SCP /OTP

IP grade: IP65

Surge protection grade: 1.5KV

Efficiency: ≥87%

Working temperature: -40 ~ 65℃ (Typ. 25℃ ) Maximum case temperature: 90℃ Storage temperature: -40 ~ 85℃ (Typ. 25℃ )

Working humidity: 20％ RH ~ 90％ RH

Storage humidity: 10％ RH ~ 90％ RH

Warranty: 3 years

Application

LED driver 12w 300ma suitable for garden illumination, lawn lighting, floodlighting, and various outdoor lighting applications.

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	Surge
GSE-12W250-45	12W	100-265V	21-45V	250mA±5%	723020mm	1.5KV
GSE-12W300-42		100-265V	21-42V	300mA±5%	723020mm	1.5KV
GSE-12W350-40		100-265V	21-40V	350mA±5%	723020mm	1.5KV
GSE-12W450-28		100-265V	11-28V	450mA±5%	723020mm	1.5KV
GSE-12W600-22		100-265V	11-22V	600mA±5%	723020mm	1.5KV
GSE-12W900-14		100-265V	6-14V	900mA±5%	723020mm	1.5KV
