GSE 20W LED Driver

  • Modelo NO.
  • GSE-20W450-45,20W500-40,20W600-35
The GSE LED driver is a high-quality power supply designed for LED lighting. Its isolated design ensures that there is no risk of electric shock, making it safe for use in any setting. With a compact size and lightweight design, it can be easily installed in a variety of locations. Its high efficiency ensures that energy is not wasted, making it an environmentally friendly choice. This driver is ideal for use in residential and industrial LED lighting applications.

Descrição do produto

GSE 20W LED Driver Parameters

Rated input voltage: 100-265V
Output voltage: 20-45V/20-40V/20-36V
Rated power: 20W
Max current ripple: <±10％
Features
GSE: Low PF isolated semi-aluminum waterproof LED driver
Isolation without flicker LED driver, constant current output mode LED driver
Protection: Output OCP /SCP /OTP
IP grade: IP65
Surge protection grade: 2KV
Efficiency: ≥88%
Working temperature: -40 ~ 65℃ (Typ. 25℃ ) Maximum case temperature: 90℃ Storage temperature: -40 ~ 85℃ (Typ. 25℃ )
Working humidity: 20％ RH ~ 90％ RH
Storage humidity: 10％ RH ~ 90％ RH
Warranty: 3 years
Application of Driver LED 20W
Build-in lambs such as garden lights,lawn lights, flood lights,three-proof lights,wall lights,etc
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size Surge
GSE-20W450-45 20W 100-265V 20-45V 450mA±5% 90*30*20mm 2KV
GSE-20W500-40 100-265V 20-40V 500mA±5% 90*30*20mm 2KV

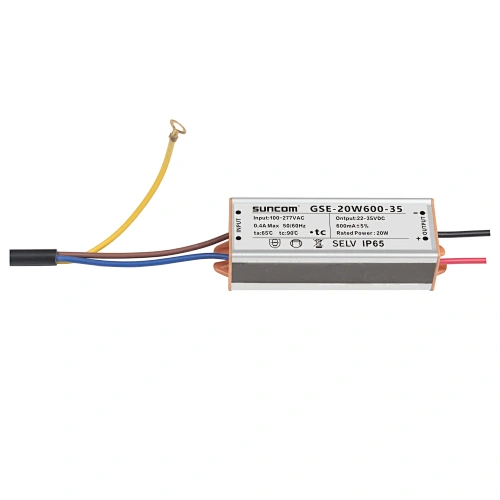

GSE-20W600-35 100-265V 20-36V 600mA±5% 90*30*20mm 2KV
