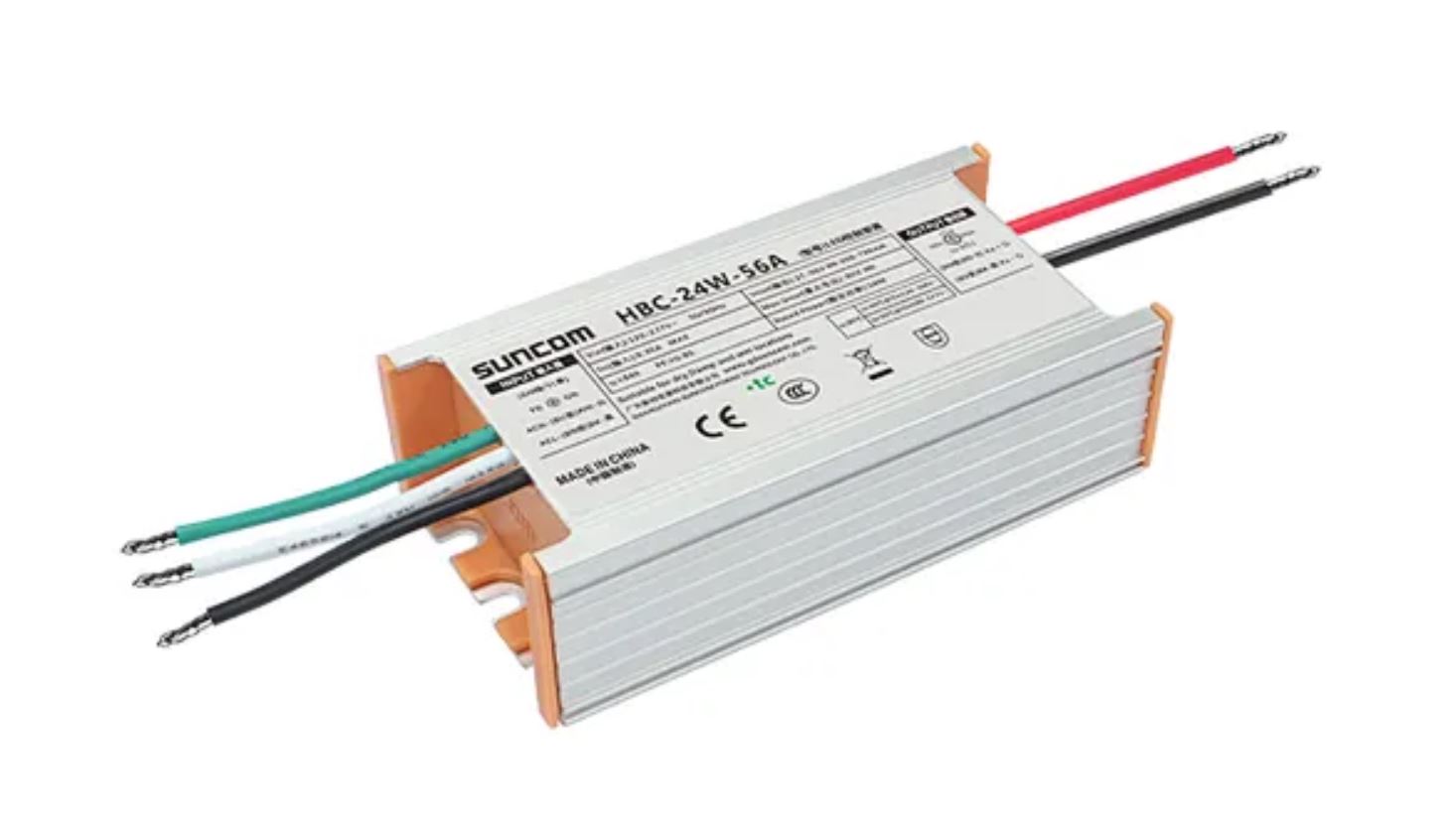

HBC 24W LED Driver

HBC 24W LED Driver

  • Modelo NO.
  • HBC-24W-56A,P,C-1
HBC-24W-56A,P,C
Version: A-Adjustable potentiometer version P-Off-line programming dimming version C-12V auxiliary power version

Descrição do produto

HBC 24W LED driver parameters Input voltage: 100-277V/DC200-300V(Input voltage: 100-120Vac, power derating to 80%) Output voltage: 18-42Vdc/27-56Vdc Rated power: 24W THD≤10%/PF≥0.97   Features of HBC 24W Isolated, flicker free LED driver Metal material case Protections: Output SCP/OVP/OTP Certifications: ENEC/CE/CB/CCC Surge protection: 4/4KV Efficiency: 80~90% IP grade: IP65/IP67 5 years warranty   Applications Street lighting, industrial lighting, highbay lighting,etc
Model list
Version Model Rated Power Input voltage Output Voltage Output Current Size THD PF
Internal Version HBC-24W-56A 24W
100-277V
200-300DC
 27-56V 350-700mA 110.5*53*32 <10% ≥0.97
HBC-24W-56P 24W
100-277V
200-300DC
 27-56V 350-700mA 110.5*53*32 <10% ≥0.97
HBC-24W-56C 24W
100-277V
200-300DC
 27-56V 350-700mA 110.5*53*32 <10% ≥0.97
External Version HBC-24W-56A 24W
100-277V
200-300DC
 27-56V 350-700mA 111.5*60*32.5 <10% ≥0.97
HBC-24W-56P 24W
100-277V
200-300DC
 27-56V 350-700mA 111.5*60*32.5 <10% ≥0.97
HBC-24W-56C 24W
100-277V
200-300DC
 27-56V 350-700mA 111.5*60*32.5 <10% ≥0.97
