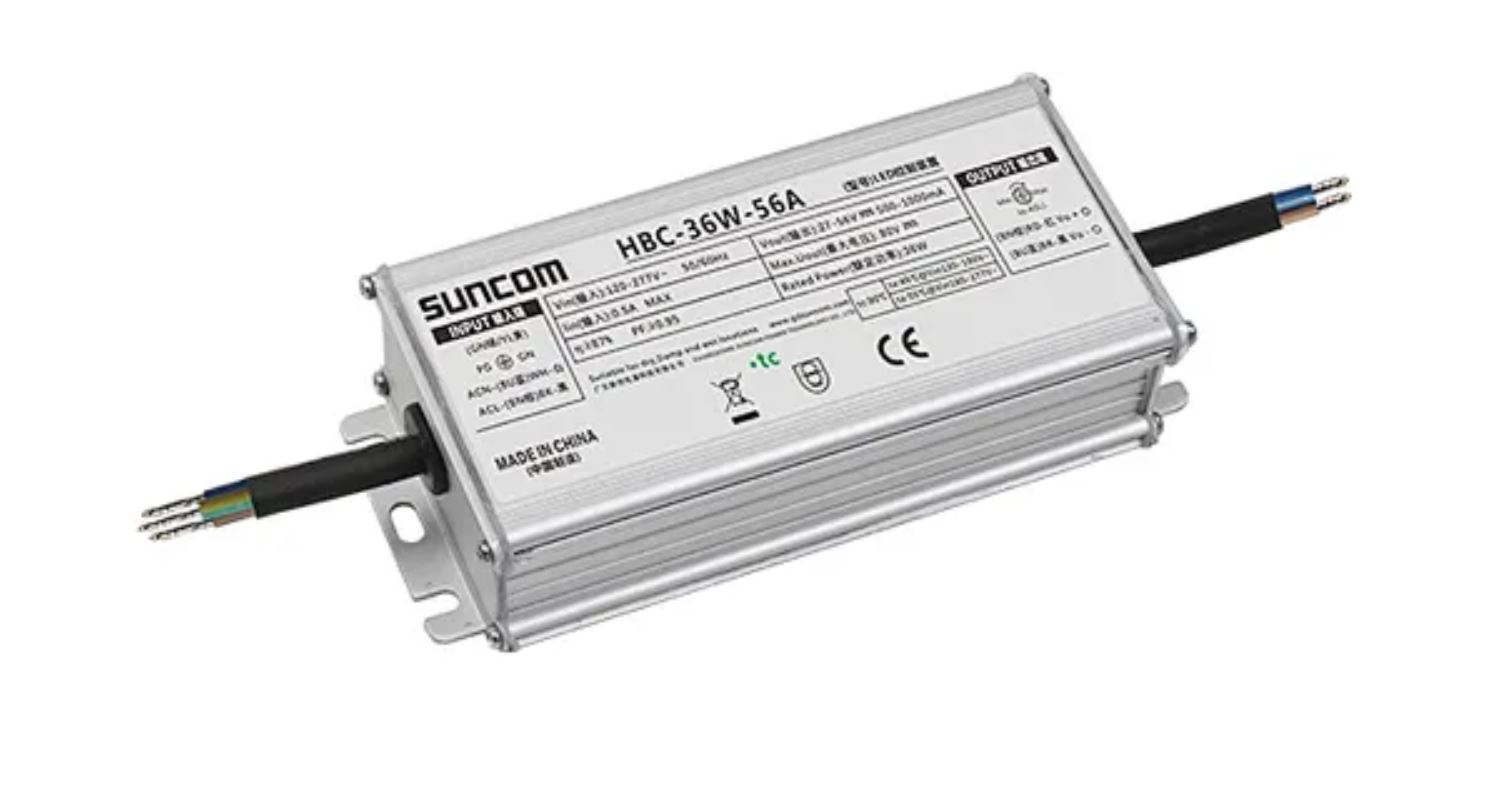

HBC 36W LED Driver

HBC-36W-56A,P,C

Version: A-Adjustable potentiometer version P-Off-line programming dimming version C-12V auxiliary power version

Descrição do produto

HBC 36W LED driver parameters Input voltage: 100-277V/DC200-300V(Input voltage: 100-120Vac, power derating to 80%) Output voltage: 18-42Vdc/27-56Vdc Rated power: 36W THD≤10%/PF≥0.97 Features of HBC 36W Isolated, flicker free LED driver Metal material case Protections: Output SCP/OVP/OTP Certifications: ENEC/CE/CB/CCC Surge protection: 4/4KV Efficiency: 80~90% IP grade: IP65/IP67 5 years warranty Applications Street lighting, industrial lighting, highbay lighting,etc

Model list

Version	Model	Rated Power	Input voltage	Output Voltage	Output Current	Size	THD	PF
Internal Version	HBC-36W-56A	36W	100-277V 200-300DC	27-56V	500-1000mA	1235332	<10%	≥0.97
	HBC-36W-56P	36W	100-277V 200-300DC	27-56V	500-1000mA	1235332	<10%	≥0.97
	HBC-36W-56C	36W	100-277V 200-300DC	27-56V	500-1000mA	1235332	<10%	≥0.97
External Version	HBC-36W-56A	36W	100-277V 200-300DC	27-56V	500-1000mA	1246032.5	<10%	≥0.97
	HBC-36W-56P	36W	100-277V 200-300DC	27-56V	500-1000mA	1246032.5	<10%	≥0.97
	HBC-36W-56C	36W	100-277V 200-300DC	27-56V	500-1000mA	1246032.5	<10%	≥0.97
