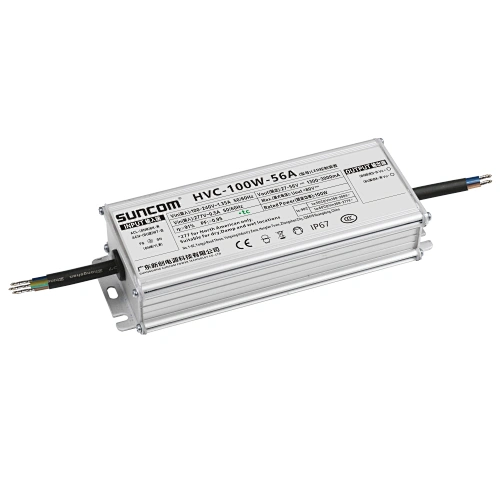

HVC 100W LED Driver
HVC 100W LED Driver - Image 2
HVC 100W LED Driver - Image 3
HVC 100W LED Driver - Image 4
HVC 100W LED Driver - Image 5
HVC 100W LED Driver - Image 6

HVC 100W LED Driver

  • Modelo NO.
  • HVC-100W-56A,B,C, HVC-100W-143A,B,C
This product is a led street light driver, specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product. Version: A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version

Descrição do produto

HVC 100W Dimmable LED Driver Parameters

Rated input voltage: 100-277V (Wide Input Voltage)
Output voltage: 27-56V/71-143V
Rated power: 100W
THD＜10%/PF＞0.95
Features of HVC 100W Dimmable LED Driver
Isolation,flicker free, constant current mode output
Metal material case, IP67
Efficiency 92%（Typ.）
Surge grade: 6/10KV
Protections: SCP/OVP/OTP
Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)
Dimming function: 3 in 1 dimming(1-10V dimming , resistance dimming, PWM signal dimming), AUX power(12V/0.25A)
Working temperature: -40 ~ +55℃
Safety case temperature: -40 ~ 90℃
Storage temperature: -40~+80℃
Warranty:  5 years
 Application of HVC 100W Dimmable LED Driver
Street lighting, highbay lighting,plant lighting, staduim lighting and other lighting lamps
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)
HVC-100W-56A 100W 100-277V 27-56V 1300-3000mA 167*61*33mm <10% >0.95
HVC-100W-56B 100W 100-277V 27-56V 1300-3000mA 167*61*33mm <10% >0.95
HVC-100W-56C 100W 100-277V 27-56V 1300-3000mA 167*61*33mm <10% >0.95
HVC-100W-143A 100W 100-277V 71-143V 500-1050mA 167*61*33mm <10% >0.95
HVC-100W-143B 100W 100-277V 71-143V 500-1050mA 167*61*33mm <10% >0.95
HVC-100W-143C 100W 100-277V 71-143V 500-1050mA 167*61*33mm <10%
>0.95
