HVC 150W LED Driver

This product is a constant current drive power supply, specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product. Version: A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version

Descrição do produto

HVC 150 Watt Led Power Supply Parameters

Rated input voltage: 100-277V

Output voltage: 27-56V/95-214V

Rated power: 150W

THD＜10%/PF＞0.95

Features of HVC 150 Watt Led Power Supply

Constant current output ,with power limitation for control mode

Efficiency up to 92%（Typ.）

Surge protection: 6/10KV

Metal material case, protection grade against water and dust: IP67

Protection: SCP/OVP/OTP

Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)

Dimming function: Three-in-one dimming (resistance dimming, 1-10V dimming , PWM dimming) and 12V/0.25A auxiliary power

Working temperature: -40 ~ +55℃ at 100-277Vac

Safety case temperature: -40 ~ 90℃

Storage temperature: -40~+80℃

Warranty: 5 years

Applications of LED Driver 150W

Street lighting, industral lighting, plant lighting flood lighting landscape lighting and other lighting lamps

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)

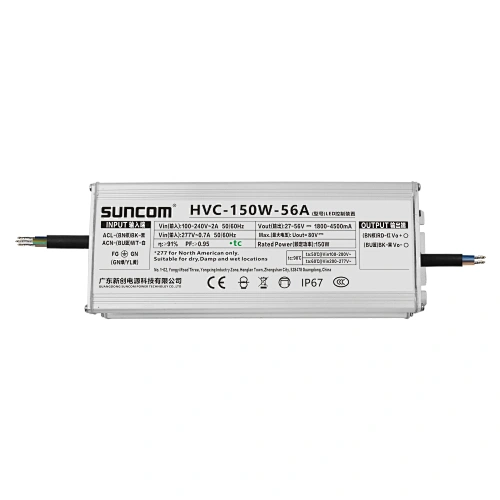

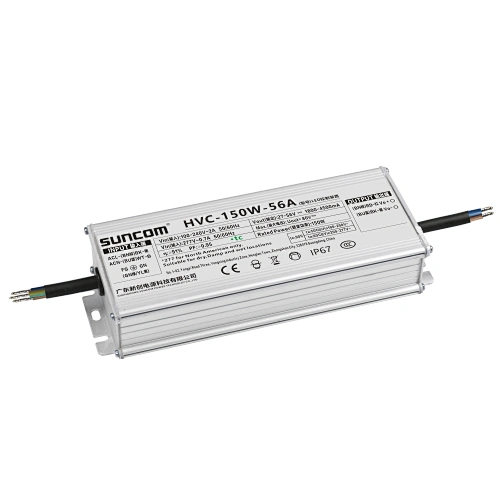

HVC-150W-56A	150W	100-277V	27-56V	1700-4200mA	1906936mm	<10%	>0,95
HVC-150W-56B	150W	100-277V	27-56V	1700-4200mA	1906936mm	<10%	>0,95
HVC-150W-56C	150W	100-277V	27-56V	1700-4200mA	1906936mm	<10%	>0,95

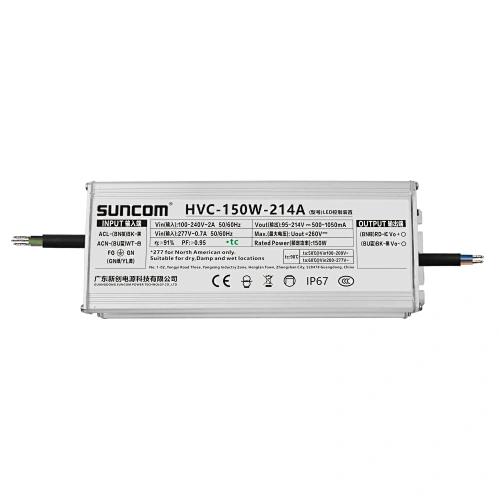

HVC-150W-214A	150W	100-277V	95-214V	500-1050mA	1906936mm	<10%	>0,95

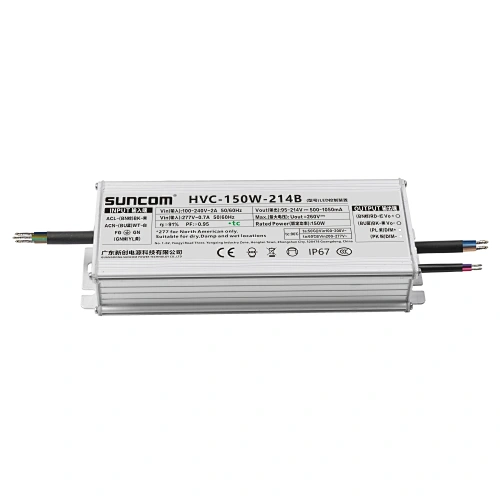

HVC-150W-214B	150W	100-277V	95-214V	500-1050mA	1906936mm	<10%	>0,95
HVC-150W-214C	150W	100-277V	95-214V	500-1050mA	1906936mm	<10%	>0,95

HVC-150W-XXX
