HVC 200W LED Driver

This product is a constant current drive power supply, specially designed for LED, with low harmonic (< 10%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product. Version: A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version

Descrição do produto

HVC 200W Dimmable LED Driver Parameters

Rated input voltage: 100-277V

Output voltage: 27-56V/143-286V

Rated power: 200W

THD＜10%/PF＞0.95

Features of HVC 200W Dimmable LED Driver

Isolated flicker free street light LED driver

Constant current output ,with power limitation for control mode

High efficiency up to 93%（Typ.）

Metal material case, IP67

Surge protection grade: 6/10KV

Protections: SCP/OVP/OTP

Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)

Dimming function: Three-in-one dimming (resistance dimming, 1-10V dimming , PWM dimming) and 12V/0.25A auxiliary power

Working temperature: -40 ~ +55℃

Safety case temperature: -40 ~ 90℃

Storage temperature: -40~+80℃

Warranty: 5 years

Applications of High Efficiency LED Drivers

Street lighting, industrial lighting, stadium lighting, plant lighting and other lighting lamps

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)

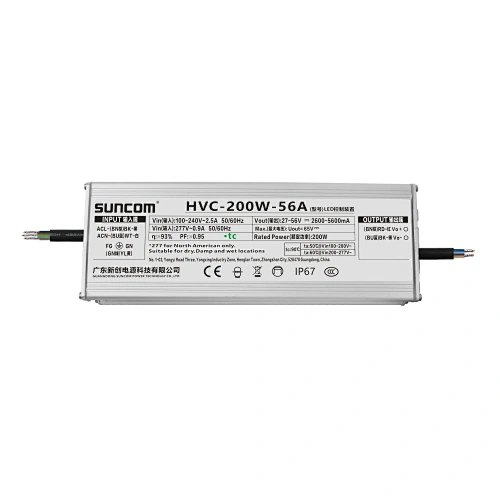

HVC-200W-56A	200W	100-277V	27-56V	2600-5600mA	2116936mm	<10%	>0,95

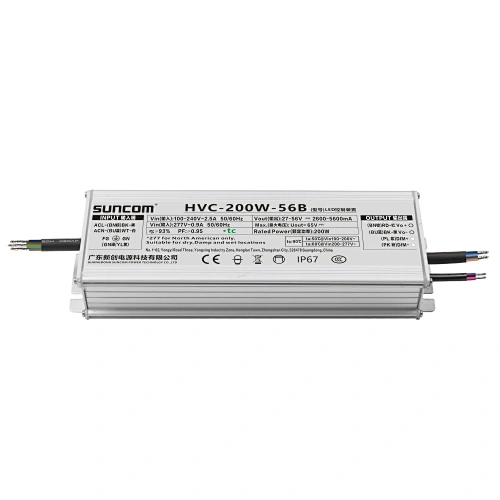

HVC-200W-56B		100-277V	27-56V	2600-5600mA	2116936mm	<10%	>0,95
HVC-200W-56C		100-277V	27-56V	2600-5600mA	2116936mm	<10%	>0,95

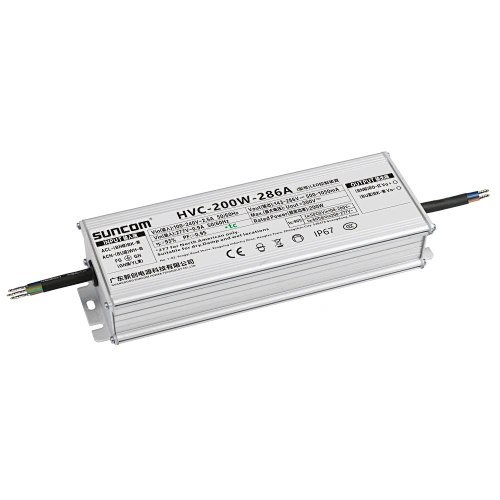

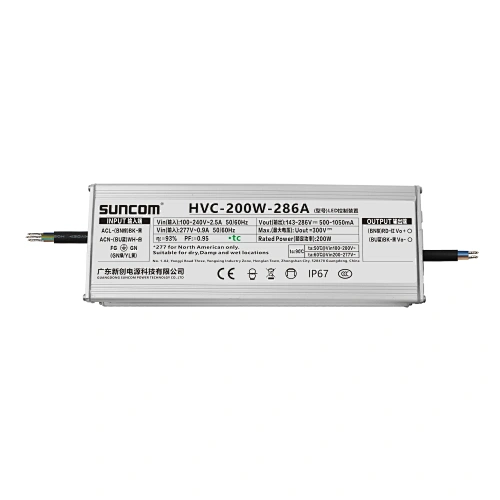

HVC-200W-286A		100-277V	143-286V	500-1050mA	2116936mm	<10%	>0,95

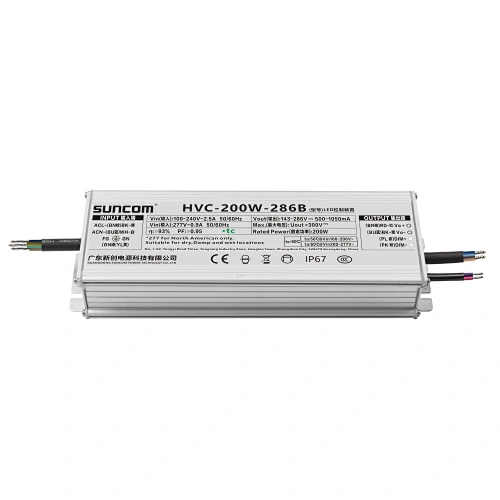

HVC-200W-286B		100-277V	143-286V	500-1050mA	2116936mm	<10%	>0,95
HVC-200W-286C		100-277V	143-286V	500-1050mA	2116936mm	<10%	>0,95

HVC-200W-XXX
