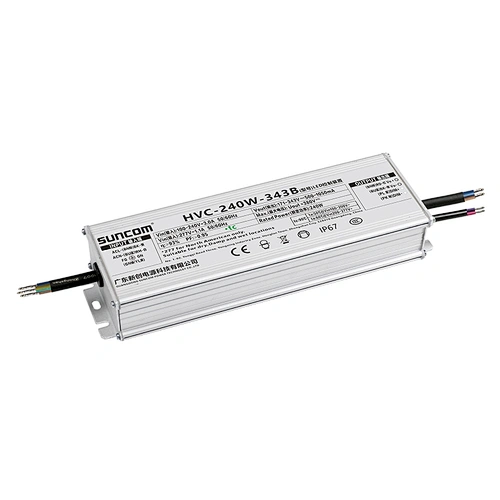

HVC 240W LED Driver
HVC 240W LED Driver - Image 2
HVC 240W LED Driver - Image 3
HVC 240W LED Driver - Image 4
HVC 240W LED Driver - Image 5
HVC 240W LED Driver - Image 6

HVC 240W LED Driver

  • Modelo NO.
  • HVC-240-56A,B,C, HVC-240-343A,B,C,
HVC 240W LED driver is a dimmable LED power supply. A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version

Descrição do produto

HVC 240W Dimmable LED Power Supply Parameters
Input voltage: 100-277V Output voltage: 27-56V/171-343V Rated power: 240W Electrical performance parameters:  THD＜10%/PF＞0.95
Features of HVC 240W Dimmable LED Power Supply
Class I type for insulation
Isolated flicker free LED driver
Constant current output ,with power limitation for control mode
Dimming led driver constant current
Efficiency 93%（Typ.）
Surge:  6/10KV
Metal material case, protection grade against water and dust: IP67
Protection: SCP/OVP/OTP
Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)
Dimming function: Three-in-one dimming (resistance dimming, 1-10V dimming, PWM dimming) and 12V/0.25A auxiliary power
Working temperature: -40 ~ +55℃ at 120-277Vac
Safety case temperature: -40 ~ 90℃
Warranty:  5 years
Applications of HVC 240W Dimmable LED Power Supply
Led driver for street light , industrial lighting, stadium lighting, landscape lighting, plant lighting, etc.
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)
HVC-240W-56A 240W 100-277V 27-56V 3500-6700mA 225*69*36mm <10% >0.95
HVC-240W-56B 240W 100-277V 27-56V 3500-6700mA 225*69*36mm <10% >0.95
HVC-240W-56C 240W 100-277V 27-56V 3500-6700mA 225*69*36mm <10% >0.95
HVC-240W-343A 240W 100-277V 171-343V 500-1050mA 225*69*36mm <10% >0.95
HVC-240W-343B 240W 100-277V 171-343V 500-1050mA 225*69*36mm <10% >0.95
HVC-240W-343C 240W 100-277V 171-343V 500-1050mA 225*69*36mm <10% >0.95
