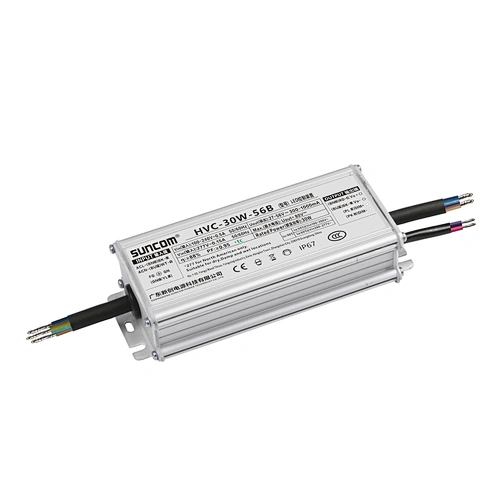

HVC 30W LED Driver
HVC 30W LED Driver - Image 2
HVC 30W LED Driver - Image 3
HVC 30W LED Driver - Image 4
HVC 30W LED Driver - Image 5

HVC 30W LED Driver

  • Modelo NO.
  • HVC-30W-56A,HVC-30W-56B,HVC-30W-56C
HVC 30W led driver is a led power supply constant current , specially designed for LED, with low harmonic (< 10%), high power factor(>0.95). Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection that greatly improve the safety and reliability of the product. Version: A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version

Descrição do produto

HVC 30W Led Driver Parameters

Input voltage:  100-277V (Wide Input Voltage)
Output voltage: 27-56V
Rated power: 30W
THD＜10%/PF＞0.95
Features of HVC 30W led driver
Class I type for insulation
led power supply constant current
Metal material case, protection grade against water and dust: IP67
Isolated LED driver
flicker free LED driver
Surge protection: 4/6KV
Efficiency 89%（Typ.）
Protection: SCP/OVP/OTP
Global ceritifications: ENEC-CE/SAA/CCC/CB (C version is compliant with new ERP directive)
Warranty:  5 years
Dimming function: 3-in-1 dimming(1-10V dimming, resistor dimming, PWM signal dimming) and 12V auxiliary power
HVC 30W Led Driver Applications
Street lighting, industrial lighting, stadium lighting, landscape lighting, plant lighting, etc.
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)

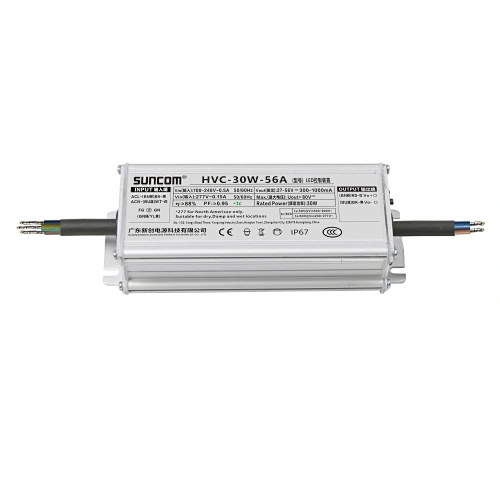

HVC-30W-56A 30W 100-277V 27-56V 300-1000mA 132*52*28mm <10% >0.95

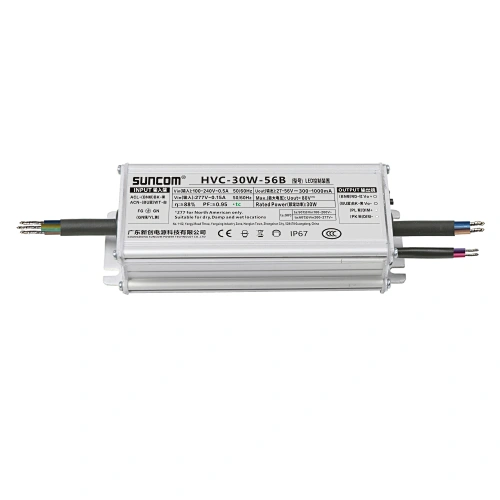

HVC-30W-56B 30W 100-277V 27-56V 300-1000mA 132*52*28mm <10% >0.95
HVC-30W-56C 30W 100-277V 27-56V 300-1000mA 132*52*28mm <10%
 >0.95
