Rated input voltage: 100-277V

Output voltage: 27-56V/54-108V

Rated power: 75W

Constant current output ,with power limitation for control mode

Isolated LED driver

Driver flicker free

Surge grade: 6/10KV

Metal material case, protection grade against water and dust: IP67

Protections: SCP/OVP/OTP

Global certifications: ENEC-CE/SAA/CCC/CB(C version is compliant with new ERP directive)

Dimming function: 3-in-1 dimming (1-10V dimming,resistance dimming, PWM signal dimming) and 12V auxiliary power

Warranty:  5 years

Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting

 Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)

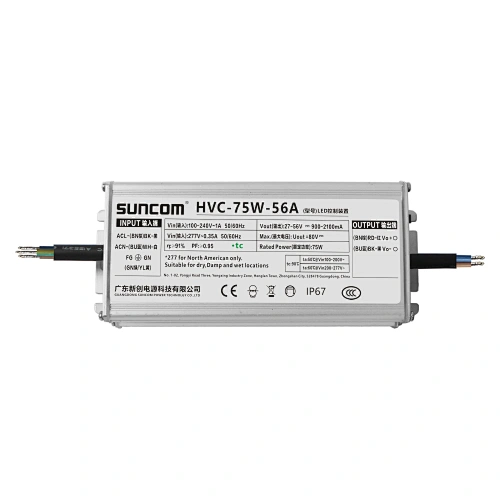

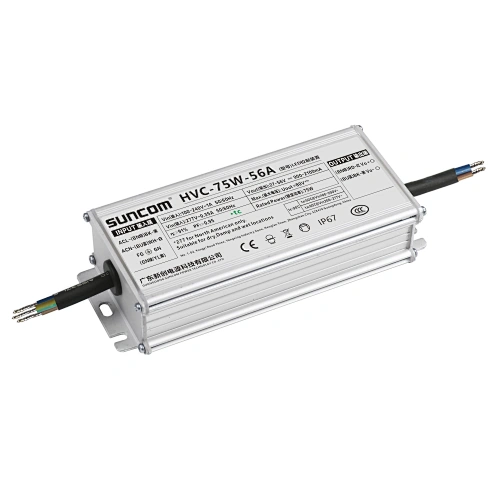

HVC-75W-56A	75W	100-277V	27-56V	900-2100mA	149*61*33mm	<10%	>0.95

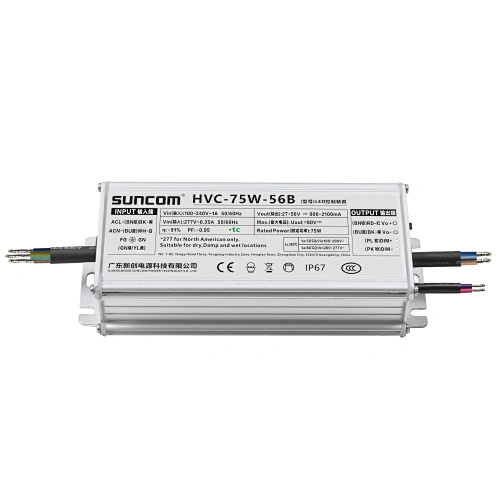

HVC-75W-56B	75W	100-277V	27-56V	900-2100mA	149*61*33mm	<10%	>0.95
HVC-75W-56C	75W	100-277V	27-56V	900-2100mA	149*61*33mm	<10%	>0.95

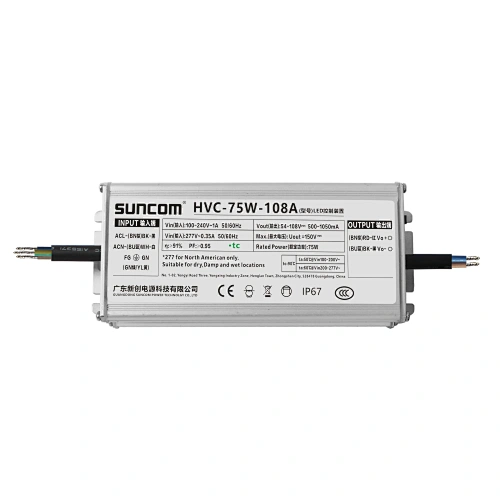

HVC-75W-108A	75W	100-277V	54-108V	500-10500mA	149*61*33mm	<10%	>0.95
HVC-75W-108B	75W	100-277V	54-108V	500-10500mA	149*61*33mm	<10%	>0.95
HVC-75W-108C	75W	100-277V	54-108V	500-10500mA	149*61*33mm	<10%	>0.95
