Experience advanced lighting control with our dimming LED driver technology. Whether you’re seeking a 200 watt dimmable LED driver or a reliable LED street light driver, our products excel in providing flexible and efficient solutions.

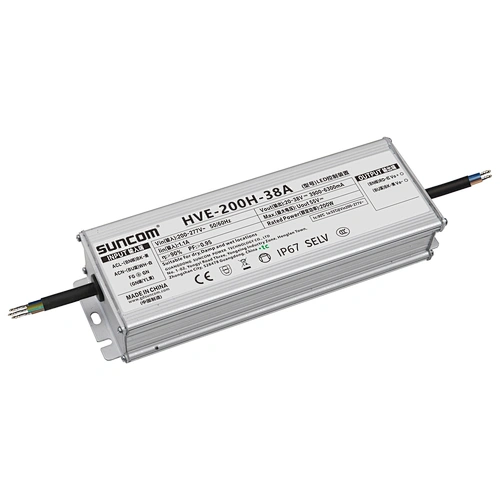

HVE 200 Watt Dimmable LED Driver Parameters Input voltage: 200-277V Output voltage: 20-38V/32-56V/95-190V Rated power: 200W Electrical performance parameters:  THD＜10%/PF＞0.95

Class I type for insulation Constant current output ,with power limitation for control mode Efficiency up to 90%（Typ.） Surge protection:  6/10KV Metal material case,  IP67 Protection:  UVP/SCP/OVP/OTP Global certifications: CCC/CE/CB Dimming function: 3-in-1 dimming (1-10V dimming, resistance dimming, PWM dimming) Output current is dimmed by external potentiometer (Only Type A) Output current is dimmed by Isolated 3 in 1 dimmer (Only Type B) Working temperature: -40 ~ +55℃ at 100-277Vac Safety case temperature: -40 ~ 90℃ Warranty:  5 years

Street lighting, plant lighting,highbay lighting, flood lighting and other lighting lamps

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)
HVE-200H-38A	200W	200-277V	20-38V	3650-6200mA	211*69*36mm	<10%	>0.95
HVE-200H-38B		200-277V	20-38V	3650-6200mA	211*69*36mm	<10%	>0.95
HVE-200H-56A		200-277V	32-56V	2500-4750mA	211*69*36mm	<10%	>0.95
HVE-200H-56B		200-277V	32-56V	2500-4750mA	211*69*36mm	<10%	>0.95
HVE-200H-190A		200-277V	95-190V	1050-1500mA	211*69*36mm	<10%	>0.95
HVE-200H-190B		200-277V	95-190V	1050-1500mA	211*69*36mm	<10%	>0.95
