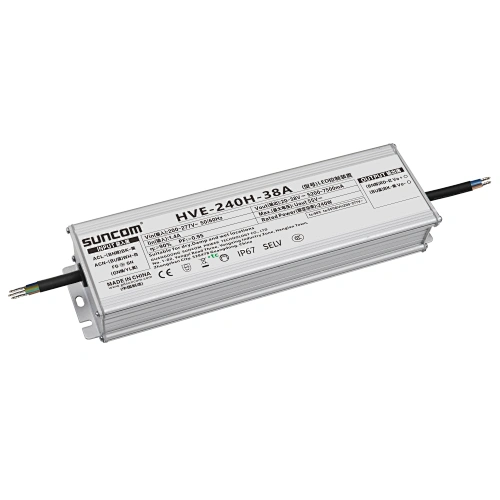

HVE 240H
HVE 240H - Image 2
HVE 240H - Image 3
HVE 240H - Image 4
HVE 240H - Image 5

HVE 240H

  • Modelo NO.
  • HVE-240H-38A,B, HVE-240H-56A,B, HVE-240H-228A,B
The LED power adapter is constant current output waterproof driver, designed for LED luminaires like street lighting, industrial lighting and other applications.The three-in-one dimming version supports three modes of dimming: 1-10V, PWM, and resistance. With isolated, low THD and high PF features, this driver ensures high quality and safe operation. Choose the LED driver for reliable and efficient lighting solutions. Version: A-Adjustable potentiometer version B- Three-in-one dimming version

Descrição do produto

Experience superior lighting control with our cutting-edge LED power adapter and waterproof LED driver technology. Our waterproof drivers are designed to provide reliable performance in a variety of lighting applications, including street lighting, plant lighting, highbay lighting, stadium lighting, flood lighting, and other lighting lamps.
HVE 240H Led Power Adapter Parameters Input voltage: 200-277V Output voltage: 20-38V/32-56V/114-228V Rated power: 240W THD＜10%/PF＞0.95
Features of HVE 240H Led Power Adapter
Class I type for insulation Constant current output, with power limitation for control mode
LED driver waterproof Efficiency: 90%（Typ.） Surge protection: 6/10KV Metal material case, IP67 Protection: UVP/SCP/OVP/OTP Global certifications: CCC/CE/CB Dimming function: 3-in-1 dimming (1-10V dimming, resistance dimming, PWM dimming) Output current is dimmed by external potentiometer (Only Type A) Output current is dimmed by Isolated 3 in 1 dimmer (Only Type B) Working temperature: -40 ~ 55℃ Safety case temperature: -40 ~ 90℃
Storage temperature: -40~+80℃
Warranty:  5 years
Applications
Street lighting, plant lighting, highbay lighting, stadium lighting flood lighting and other lighting lamps
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)
HVE-240H-38A 240W 200-277V 20-38V 4400-6250mA 240*69*36mm <10% >0.95
HVE-240H-38B 200-277V 20-38V 4400-6250mA 240*69*36mm <10% >0.95
HVE-240H-56A 200-277V 32-56V 3000-5700mA 240*69*36mm <10% >0.95
HVE-240H-56B 200-277V 32-56V 3000-5700mA 240*69*36mm <10% >0.95
HVE-240H-228A 200-277V 114-228V 1050-1500mA 240*69*36mm <10% >0.95
HVE-240H-228B 200-277V 114-228V 1050-1500mA 240*69*36mm <10% >0.95
