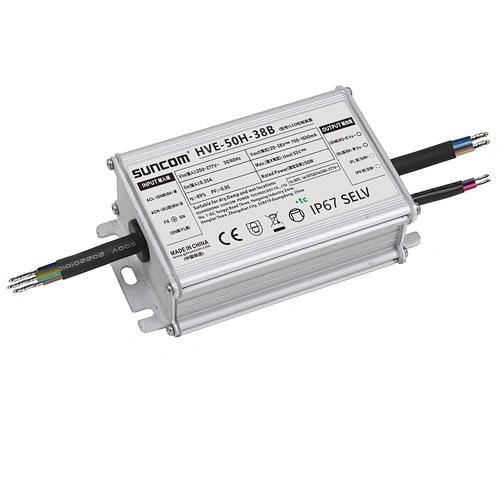

HVE 50H

The LED driver is constant current output mode, designed for LED luminaires like street lighting, industrial lighting and other applications.The three-in-one dimming version supports three modes of dimming: 0-10V, PWM, and resistance. With isolated, low THD AND high PF features, this driver ensures high quality and safe operation. Choose the LED driver for reliable and efficient lighting solutions. A-Adjustable potentiometer version B- Three-in-one dimming version

Descrição do produto

HVE 50H LED Power Supply Driver Parameters Input voltage: 200-277V Output voltage: 20-38V/36-72V Rated power: 50W THD＜10%/PF＞0.95

Features of HVE 50H LED Power Supply Driver

Class I type for insulation Constant current output ,with power limitation for control mode Efficiency: 89%（Typ.） Surge protection: 4/6KV Metal material case, IP67 Protection: UVP/SCP/OVP/OTP Global certifications: CCC/CE/CB Dimming function: 3-in-1 dimming (resistance dimming, 1-10V dimming, PWM dimming) Working temperature: -40 ~ +55℃ Safety case temperature: -40 ~ 90℃

Storage temperature: -40~+80℃ Warranty: 5 years

Applications of HVE 50H LED Power Supply Driver

Our versatile lighting solutions cater to a wide spectrum of needs, encompassing indoor LED drivers for applications like street lighting, industrial lighting, stadium lighting, flood lighting, landscape lighting, and plant lighting.

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)
HVE-50H-38A	50W	200-277V	20-38V	900-1500mA	1096133mm	<10%	>0.95
HVE-50H-38B		200-277V	20-38V	900-1500mA	1096133mm	<10%	>0.95
HVE-50H-56A		200-277V	32-56V	600-1200mA	1096133mm	<10%	>0.95
HVE-50H-56B		200-277V	32-56V	600-1200mA	1096133mm	<10%	>0.95
HVE-50H-72A		200-277V	36-72V	500-1050mA	1096133mm	<10%	>0.95
HVE-50H-72B		200-277V	36-72V	500-1050mA	1096133mm	<10%	>0.95

HVE-50H-XXX
