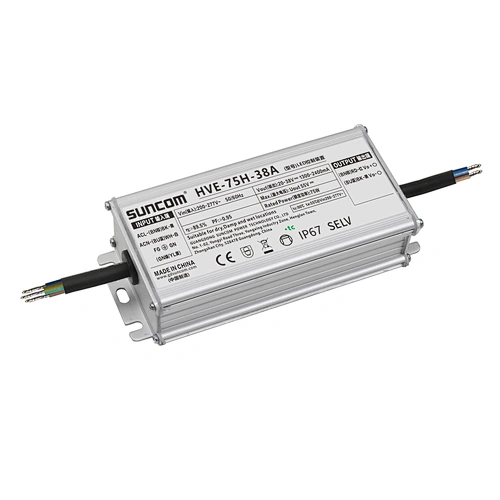

HVE 75H LED Current Driver Parameters Input voltage: 200-277V Output voltage: 20-38V/32-56V/54-108V Rated power: 75W Electrical performance parameters: THD＜10%/PF＞0.95

Class I type for insulation Constant current output ,with power limitation for control mode Efficiency up to 89.5%（Typ.） Surge protection: 4/6KV Metal material case,  IP67 Protection:  UVP/SCP/OVP/OTP Global certifications: CCC/CE/CB Dimming function: 3-in-1 dimming (resistance dimming, 1-10V dimming, PWM dimming), other dimming

Output current is dimmed by external potentiometer ( Only Type A ) Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B） Working temperature: -40 ~ +55℃ Safety case temperature: -40 ~ 90℃ Warranty:  5 years

Our innovative LED street light drivers play a crucial role in enhancing various lighting scenarios, such as street lighting, plant lighting, highbay lighting, landscape lighting, and stadium lighting.

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	PF.(Typ)
HVE-75H-38A	75W	200-277V	20-38V	1400-2400mA	141*61*33mm	<10%	>0.95
HVE-75H-38B		200-277V	20-38V	1400-2400mA	141*61*33mm	<10%	>0.95
HVE-75H-56A		200-277V	32-56V	950-1800mA	141*61*33mm	<10%	>0.95
HVE-75H-56B		200-277V	32-56V	950-1800mA	141*61*33mm	<10%	>0,95
HVE-75H-108A		200-277V	54-108V	500-1050mA	141*61*33mm	<10%	>0.95
HVE-75H-108B		200-277V	54-108V	500-1050mA	141*61*33mm	<10%	>0.95
