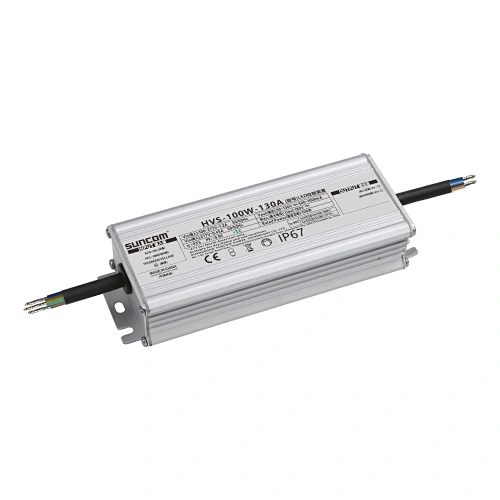

HVS 100W LED Driver

A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version (optional Dim-to-Off )

Descrição do produto

HVS 100W LED Panel Light Driver Parameter

Input voltage range: 100-277V

Output voltage: 90-130V

Rated power: 100W

THD＜10%/PF＞0.95

Features HVS 100W LED Panel Light Driver

Class I type for insulation Constant current output , with power limitation for control mode, non-isolated

Flicker free led driver Efficiency up to 93% （Typ.）

Surge protection: 6/10KV

Metal material case, protection grade against water and dust: IP67

Protections: SCP/OTP/OVP

Certifications: CCC/CE/CB (C version is compliant with the new ERP standard)

Dimming function: 3 in 1 dimming(1-10V dimming/PWM dimming/resistance dimming), 12/0.25A AUX power

Output current is dimmed by external potentiometer (Only Type A) Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B） Output current dimmed by isolated 3-in-1 dimmer +12V auxiliary power output（Only Type C）

Working temperature: -40~55℃

Safety case temperature: -40 ~ 90℃ Storage temperature: -40~+80℃

Warranty: 5 years

Application of HVS 100 Watt Driver

Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting , plant lighting

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	PF.(Typ)

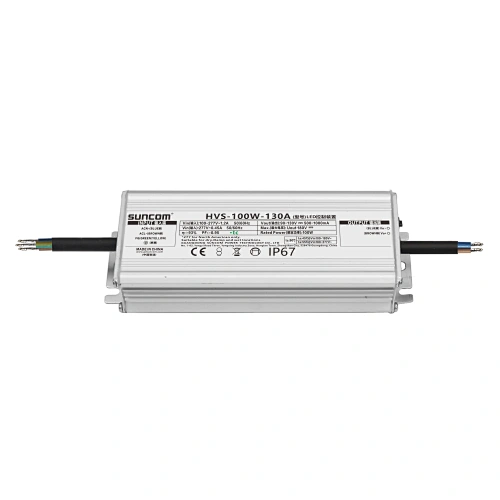

HVS-100W-130A	100W	100-277V	90-130V	800-1500mA	1365632mm	<10%	>0.95

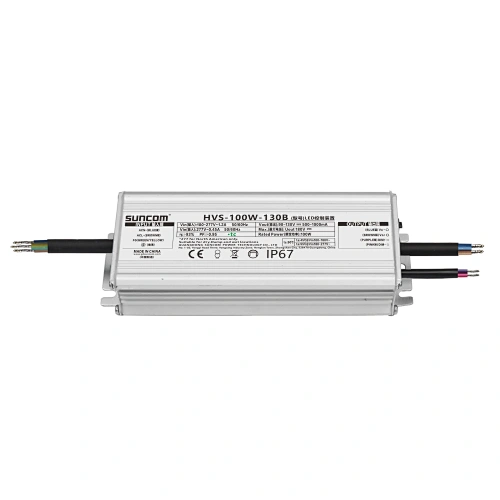

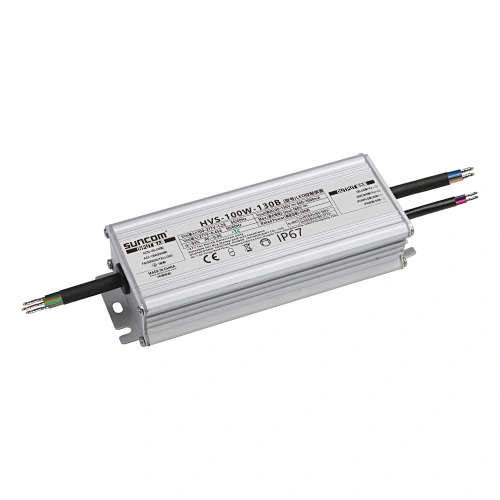

HVS-100W-130B		100-277V	90-130V	800-1500mA	1365632mm	<10%	>0.95
HVS-100W-130C		100-277V	90-130V	800-1500mA	1365632mm	<10%	>0.95

HVS-100W-XXX
