Class I type for insulation Constant current output , with power limitation for control mode, non-isolated, flicker free Efficiency: ≥94%

Surge protection: 6/10KV Metal material case, IP67 Protections: SCP/OTP/OVP Certifications: CCC/CE/CB (C version is compliant with the new ERP standard) Dimming function: 3 in 1 dimming(1-10V dimming/PWM dimming/resistance dimming), 12/0.25A AUX power

Output current is dimmed by external potentiometer (Only Type A) Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B） Output current is dimmed by Isolated 3 in 1 dimmer and 12V auxiliary source（Only Type C )

Working temperature: -40~55℃ at 100-277Vac Safety case temperature: -40 ~ 90℃ Storage temperature: -40~+80℃

Warranty: 5 years

Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting , plant lighting

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)

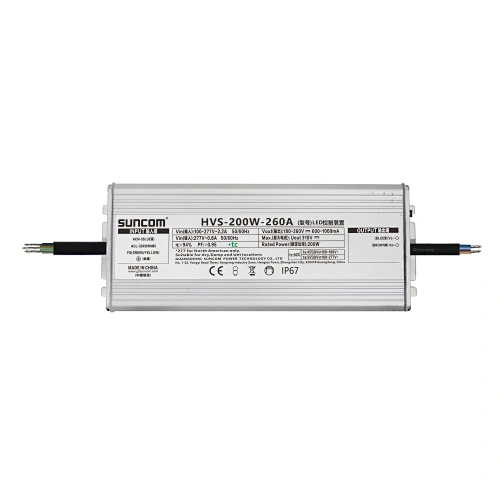

HVS-200W-260A	200W	100-277V	180-260V	550-1050mA	150*65*38mm	<10%	>0,95

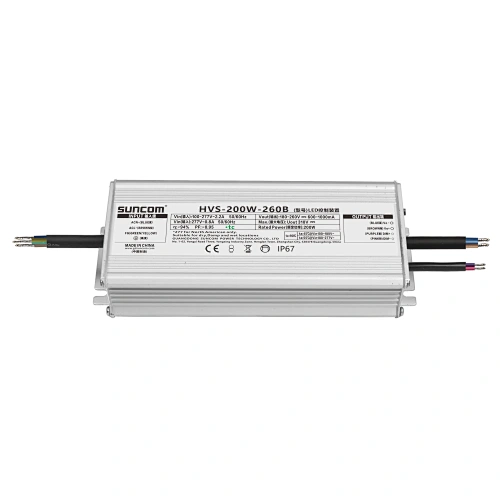

HVS-200W-260B		100-277V	180-260V	550-1050mA	150*65*38mm	<10%	>0,95

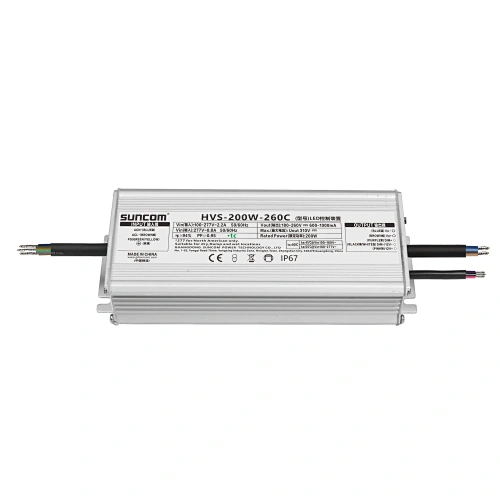

HVS-200W-260C		100-277V	180-260V	550-1050mA	150*65*38mm	<10%	>0,95
