Class I type for insulation LED driver constant current  output , with power limitation for control mode, non-isolated, flicker free Efficiency up to 94%

Surge protection: 6/10KV

Metal material case,  IP67 Protections: SCP/OTP/OVP Certifications: CCC/CE/CB (C version is compliant with the new ERP standard) Dimming function: 3 in 1 dimming(1-10V dimming/PWM dimming/resistance dimming), 12/0.25A AUX power Output current is dimmed by external potentiometer (Only Type A) Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B） Output current is dimmed by Isolated 3 in 1 dimmer and 12V auxiliary source（Only Type C ) Working temperature: -40~55℃ Safety case temperature: -40 ~ 90℃ Storage temperature: -40~+80℃

Warranty: 5 years

In the realm of lighting solutions, covering street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, and plant lighting, our innovative products extend to diverse applications. This includes seamlessly integrated systems like the efficient LED flood light driver, ensuring optimal performance across various lighting scenarios.

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	Pf.(Typ)
HVS-240W-260A	240W	100-277V	180-260V	750-1250mA	150*65*38mm	<10%	>0,95

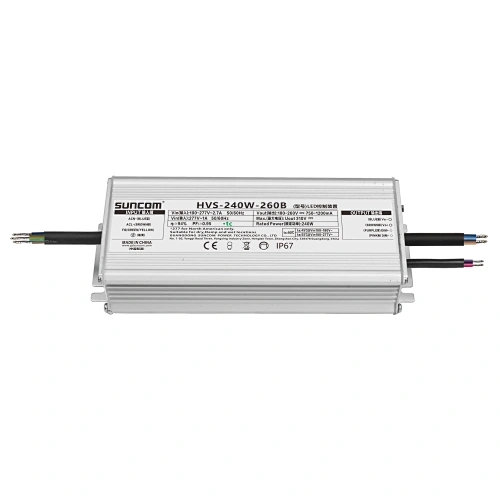

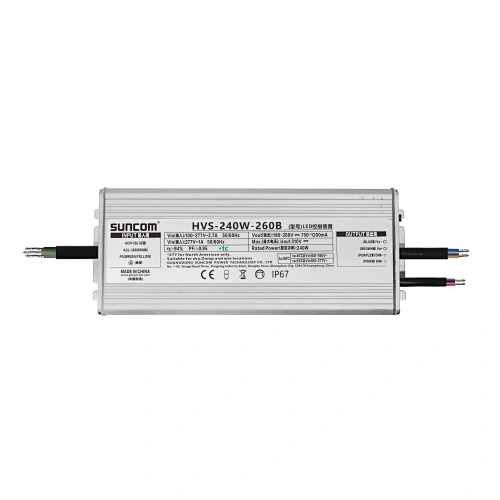

HVS-240W-260B		100-277V	180-260V	750-1250mA	150*65*38mm	<10%	>0,95

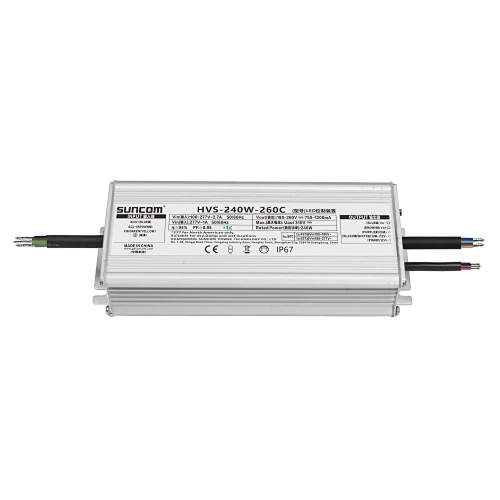

HVS-240W-260C		100-277V	180-260V	750-1250mA	150*65*38mm	<10%	>0,95
