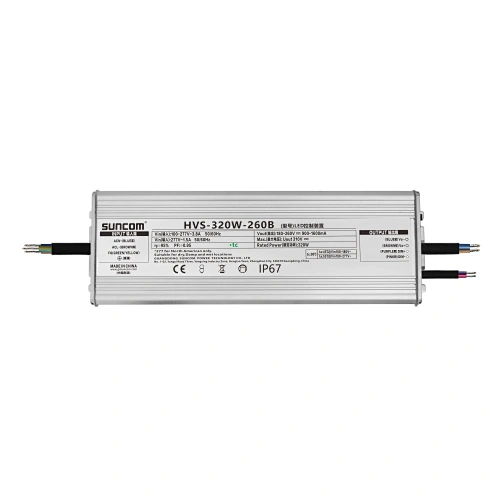

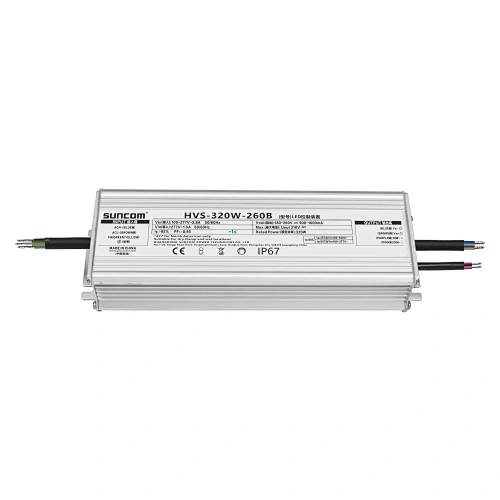

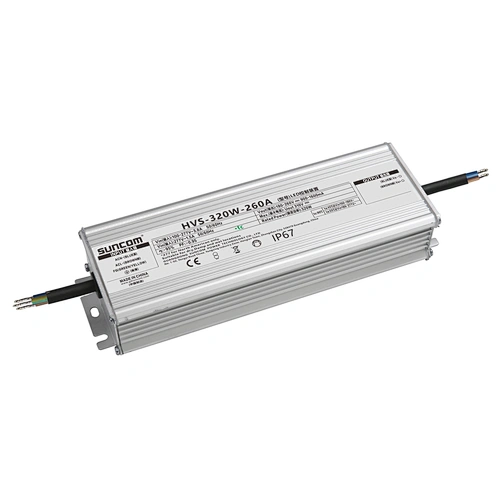

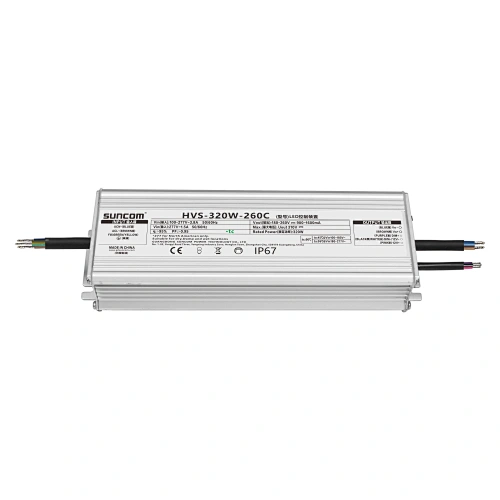

HVS 320W LED Driver
HVS 320W LED Driver - Image 2
HVS 320W LED Driver - Image 3
HVS 320W LED Driver - Image 4
HVS 320W LED Driver - Image 5

HVS 320W LED Driver

  • Modelo NO.
  • HVS-320W-260A,B,C
A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version (optional Dim-to-Off )

Descrição do produto

HVS 320W LED Driver Parameter
Input voltage range: 100-277V Output voltage: 180-260V
Rated power: 320W
THD＜10%/PF＞0.95
Features
Class I type for insulation Constant current output , with power limitation for control mode, non-isolated, flicker free
High power constant current led driver Efficiency up to 94%（Typ.）
Surge protection: 6/10KV
Metal material case, IP67
Protections: SCP/OTP/OVP Certifications: CCC/CE/CB (C version is compliant with the new ERP standard) Dimming function: 3 in 1 dimming(1-10V dimming/PWM dimming/resistance dimming), 12/0.25A AUX power Output current is dimmed by external potentiometer (Only Type A) Output current is dimmed by Isolated 3 in 1 dimmer（Only Type B） Output current is dimmed by Isolated 3 in 1 dimmer and 12V auxiliary source（Only Type C ) Working temperature: -40 ~ 55℃ Safety case temperature: -40 ~ 90℃ Storage temperature: -40 ~ 80℃ Warranty: 5 years
Application of LED Driver Power Supply
Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting , plant lighting
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)
HVS-320W-260A 320W 100-277V 180-260V 750-12500mA 200*65*38mm <10% >0,95
HVS-320W-260B 100-277V 180-260V 750-12500mA 200*65*38mm <10% >0,95
HVS-320W-260C 100-277V 180-260V 750-12500mA 200*65*38mm <10% >0,95
