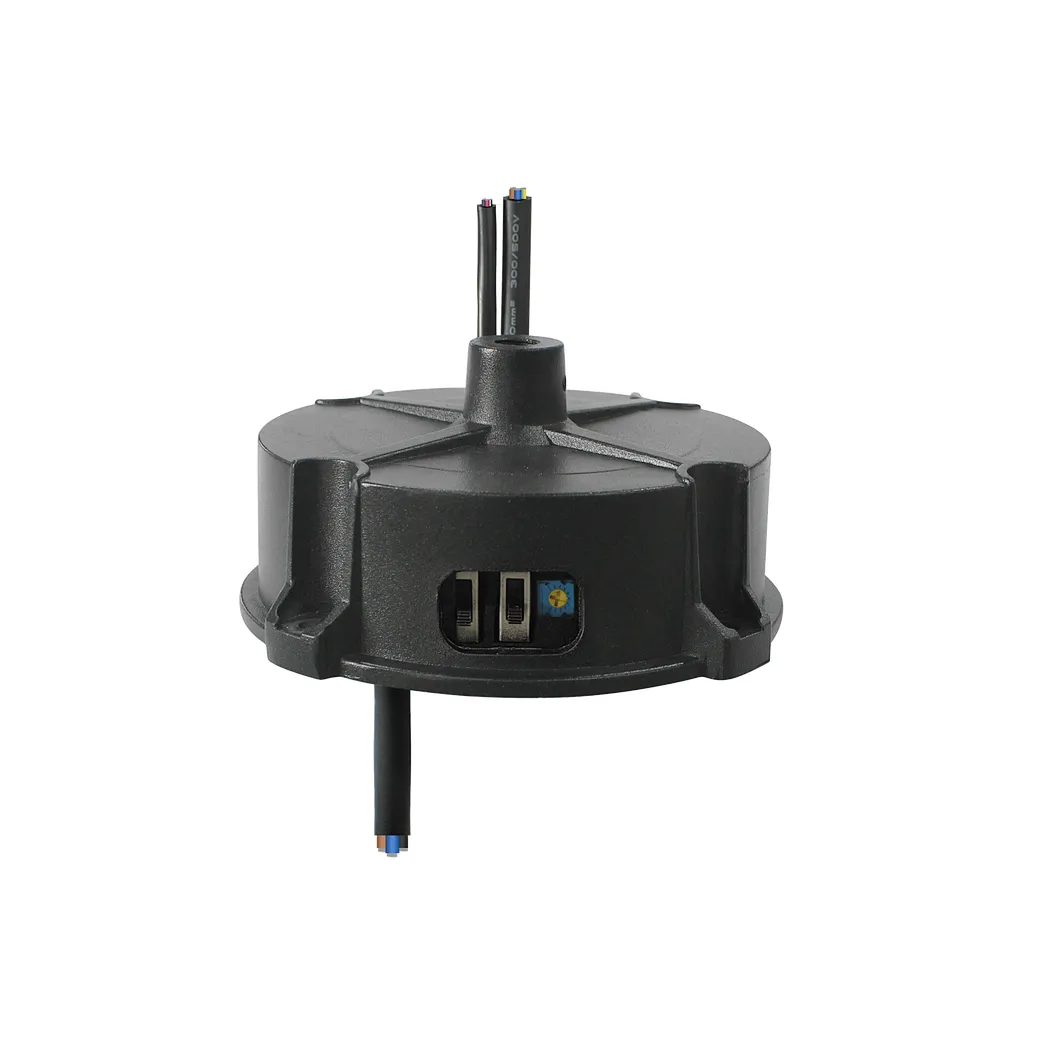

LCS 80-H UFO Driver

LCS-80H-300A,P,C,D,DD,DP,DDP,DC,DDC

A-Adjustable potentiometer version P-Adjustable current + programmed dimming version C-Adjustable current + programmed dimming + 12V auxiliary power D-Adjustable current+ DIP swtich for power DD-Adjustable current+ DIP swtich for power and CCT DP-Adjustable current + programmed dimming version+DIP swtich for power DDP-Adjustable current + programmed dimming version+DIP swtich for power and CCT DC-Adjustable current + programmed dimming version+DIP swtich for power+12V auxiliary power DDC-Adjustable current + programmed dimming version+DIP swtich for power and CCT+12V auxiliary power

Descrição do produto

LCS 80H LED driver parameters

Input voltage: 100-277V

Output voltage: 180-300Vdc

Rated power: 80W

THD<10%/PF>0.95

Features of LCS 80H

Non-Isolated, flicker free LED driver

Metal material case

Protections: Input UVP, out put OCP/SCP/OTP/OVP

Certifications:CCC/CE/CB

Surge protection: 4/6KV

Efficiency: 94.5%

IP grade: IP65

5 years warranty

Input Uvp: When Input Volate Is 100-120Vac, Power Will Be 80%; When Input Voltage Is Less Then 95Vac, Power Will Be 50%. Remark: Withstanding Voltage For Lamp Board≥3kV Creepage Distance≥3.5Mm ※ Note: Installation Hole Diameter Is 113mm

Applications

Street lighting, industrial lighting, highbay lighting,etc

Model list

Model	Rated Power	Input Voltage	Output Voltage	Output Current	Product Size	THD.(Typ)	PF.(Typ)
LCS-80H-300A	80W	100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
LCS-80H-300P		100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
LCS-80H-300C		100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
LCS-80H-300D		100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
LCS-80H-300DD		100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
LCS-80H-300DP		100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
LCS-80H-300DDP		100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
LCS-80H-300DC		100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
LCS-80H-300DDC		100-277V	180-300V	170-400mA	φ128*58mm	<10%	>0.95
