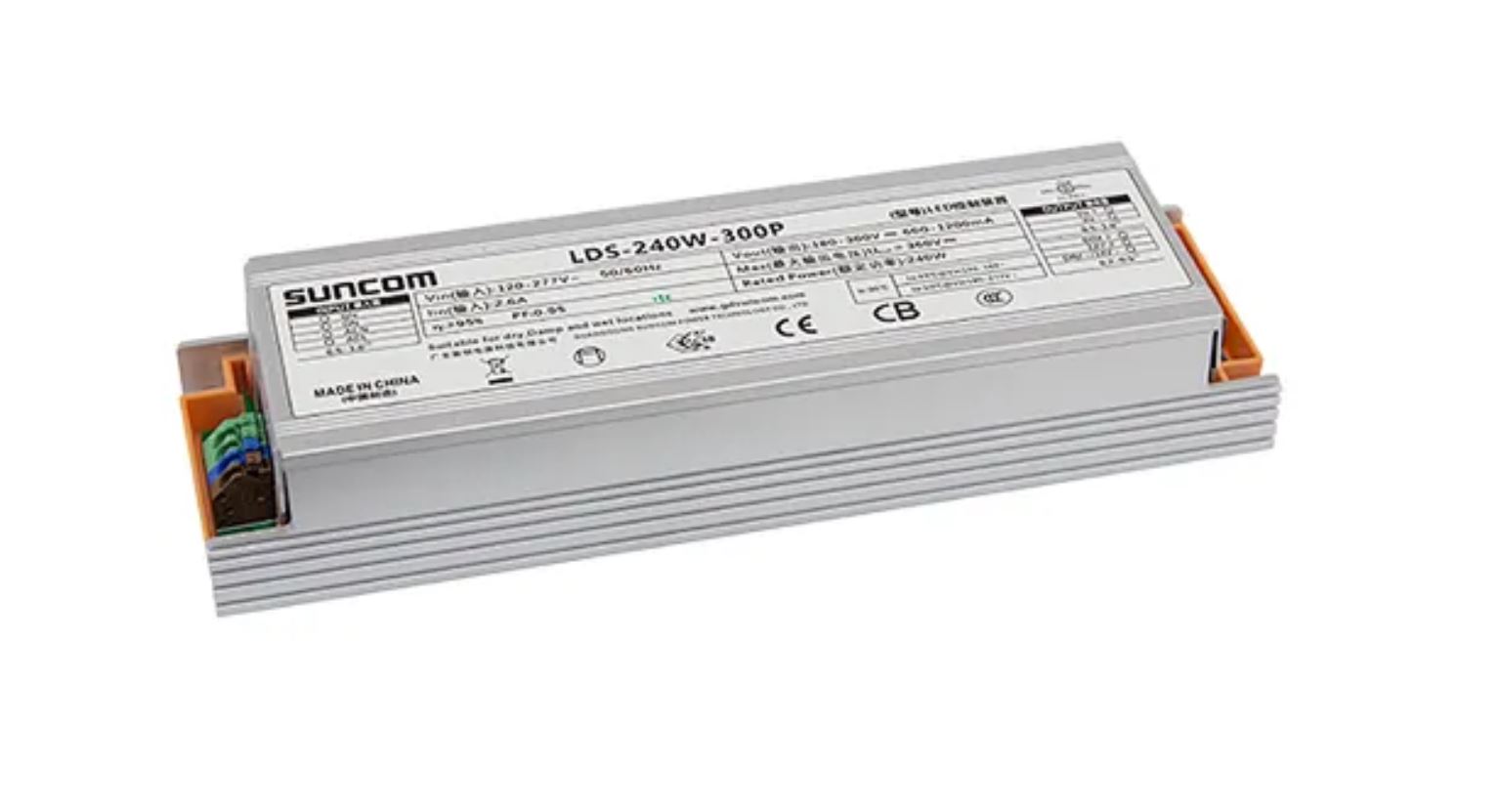

LDS 240W LED Driver

LDS 240W LED Driver

  • Modelo NO.
  • LDS-240W-300A,P,L-1
Version: A-Adjustable potentiometer version P-Off-line programming dimming version L-Light controlled version

Descrição do produto

LDS 240W LED driver parameters Input voltage: 100-277V(Input voltage: 100-120Vac, power derating to 80%) Output voltage: 90-180Vdc/180-300Vdc Rated power: 240W THD<10%/PF>0.95   Features of LDS 240W Non-isolated, flicker free LED driver Metal material case Protections: Input UVP(Power off when input voltage <80±5Vac), output SCP/OVP/OLP/OTP Certifications: ENEC/CE/CB/CCC Surge protection: 4/4KV Efficiency: 92%~95% IP grade: IP42 5 years warranty   Applications Street lighting, industrial lighting, highbay lighting,etc
Model list
Model Rated Power Input voltage Output Voltage Output Current Size THD PF
LDS-240W-300A 240W
100-277V
 180-300V 600-1200mA 192*55*35 <10% >0.95
LDS-240W-300P 240W
100-277V
 180-300V 600-1200mA 192*55*35 <10% >0.95
LDS-240W-300L 240W
100-277V
 180-300V 600-1200mA 192*55*35 <10% >0.95
