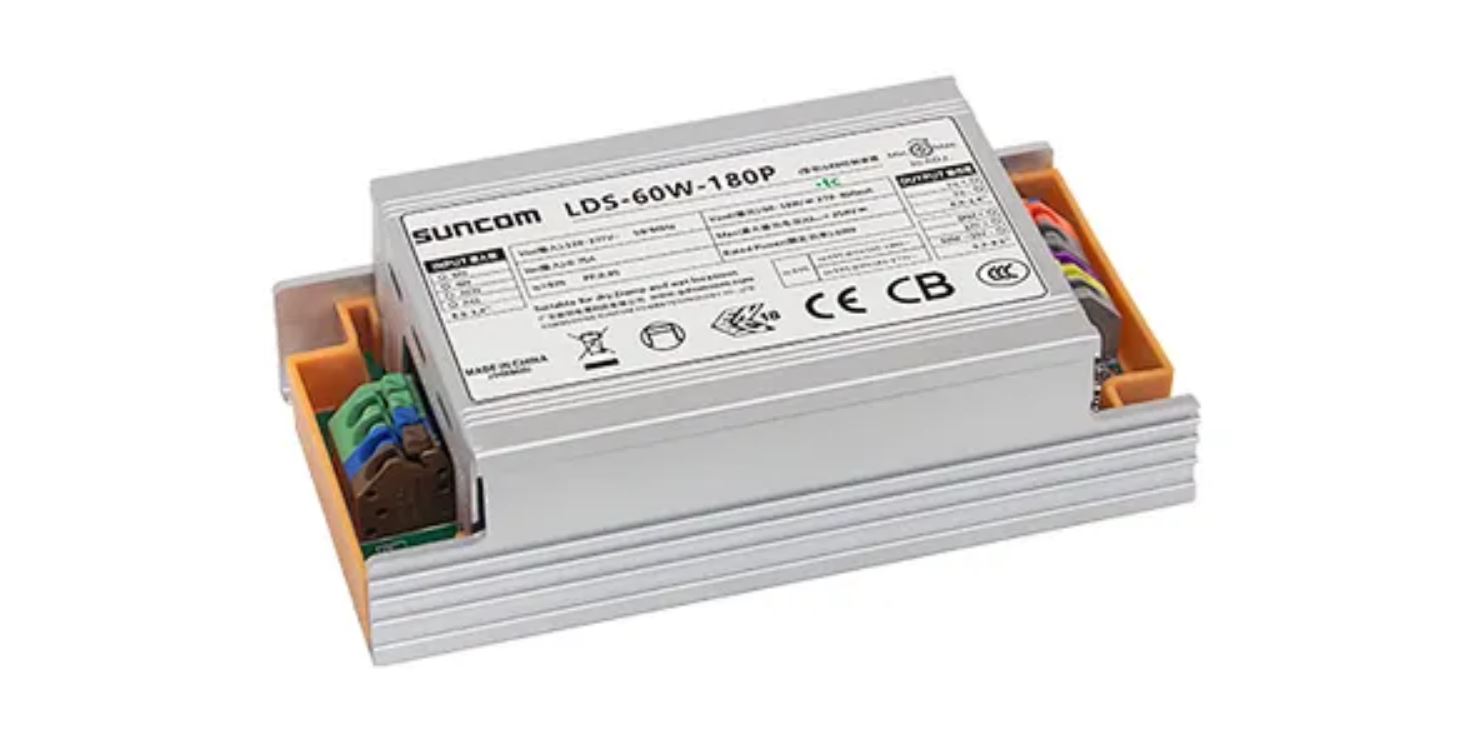

LDS 60W LED Driver

LDS 60W LED Driver

  • Modelo NO.
  • LDS-60W-180A,P,L-1
Version: A-Adjustable potentiometer version P-Off-line programming dimming version L-Light controlled version

Descrição do produto

LDS 60W LED driver parameters Input voltage: 100-277V(Input voltage: 100-120Vac, power derating to 80%) Output voltage: 90-180Vdc/180-300Vdc Rated power: 60W THD<10%/PF>0.95   Features of LDS 60W Non-isolated, flicker free LED driver Metal material case Protections: Input UVP(Power off when input voltage <80±5Vac), output SCP/OVP/OLP/OTP Certifications: ENEC/CE/CB/CCC Surge protection: 4/4KV Efficiency: 92%~95% IP grade: IP42 5 years warranty   Applications Street lighting, industrial lighting, highbay lighting,etc
Model list
Model Rated Power Input voltage Output Voltage Output Current Size THD PF
LDS-60W-180A 60W
100-277V
 90-180V 270-600mA 104*55*31 <10% >0.95
LDS-60W-180P 60W
100-277V
 90-180V 270-600mA 104*55*31 <10% >0.95
LDS-60W-180L 60W
100-277V
 90-180V 270-600mA 104*55*31 <10% >0.95
