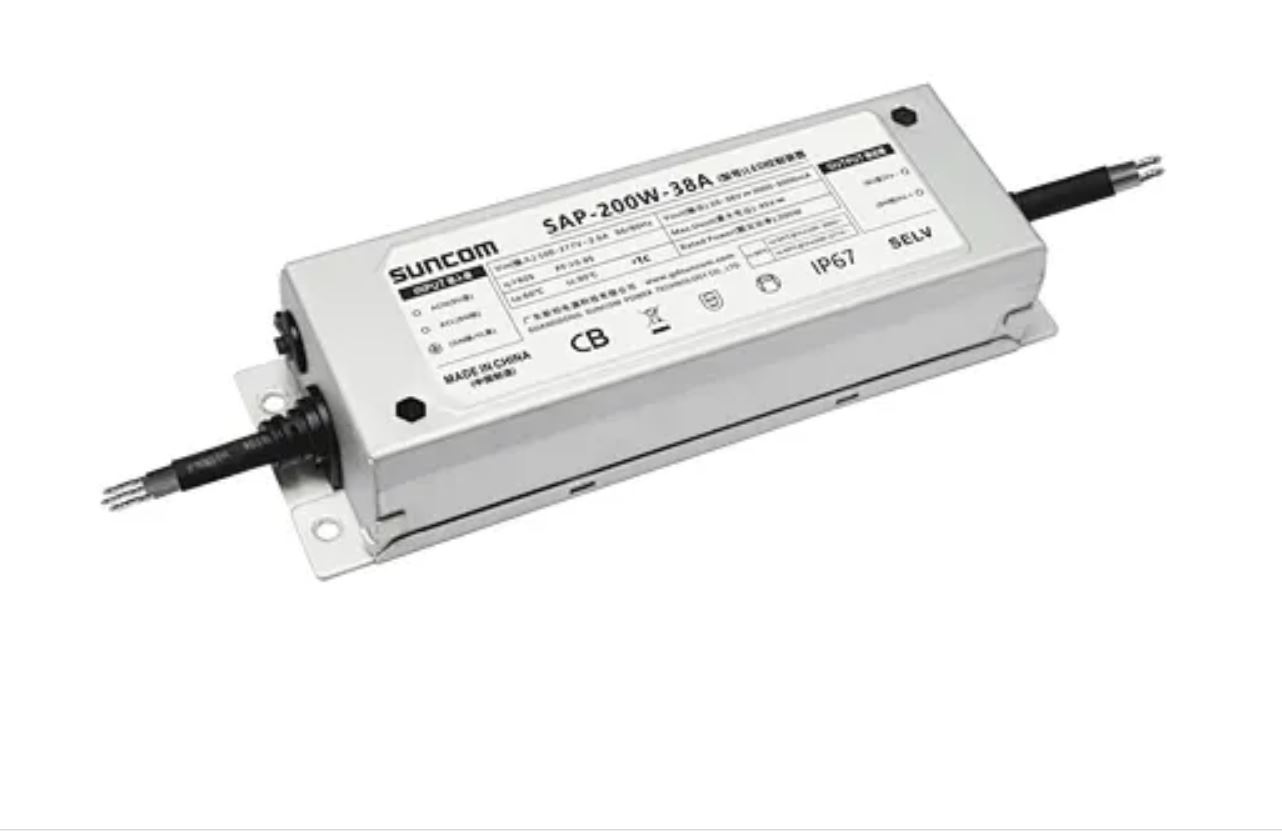

SAP 200W LED Driver - Image 3

SAP 200W LED Driver

  • Modelo NO.
  • SAP-200W-38A,B,C, SAP-200W-56A,B,C, SAP-200W-286A,B,C-1
SAP-200W-38A,B,C, SAP-200W-56A,B,C, SAP-200W-286A,B,C,
Version: A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version P-Off-line programming dimming version

Descrição do produto

SAP 200W LED driver parameters

Input voltage: 100-277V

Output voltage: 20-38Vdc/27-56Vdc/95-286Vdc

Rated power: 200W

THD<10%/PF>0.95

Features of SAP 200W

Isolated, flicker free LED driver

Metal material case

Protections: Input UVP/OVP, out put OCP/SCP/OTP

Certifications:CB

Surge protection: 6/10KV

Efficiency: 92%~93%

IP grade: IP65

5 years warranty

Input UVP: If the input voltage is lower than 90Vac, the power will be reduced by half; if the input voltage is lower than 80Vac, the power will be turned off, and the AC voltage will be restored after it returns to normal.

Input OVP: If the input voltage is higher than 330Vac, the power will be turned off, and the AC voltage will be restored after it returns to normal.

Applications

Street lighting, industrial lighting, highbay lighting,etc

Model list

Model Rated Power Input voltage Output Voltage Output Current Size THD(Typ.) PF(Typ.)
SAP-200W-38A 200W 100-277V 20-38V 3000-6000mA 186*60*38 <10% >0.95
SAP-200W-56A 200W 100-277V 27-56V 2500-4800mA 186*60*38 <10% >0.95
SAP-200W-286A 200W 100-277V 95-286V 500-1050mA 186*60*38 <10% >0.95
SAP-200W-38B 200W 100-277V 20-38V 3000-6000mA 186*60*38 <10% >0.95
SAP-200W-56B 200W 100-277V 27-56V 2500-4800mA 186*60*38 <10% >0.95
SAP-200W-286B 200W 100-277V 95-286V 500-1050mA 186*60*38 <10% >0.95
SAP-200W-38C 200W 100-277V 20-38V 3000-6000mA 186*60*38 <10% >0.95
SAP-200W-56C 200W 100-277V 27-56V 2500-4800mA 186*60*38 <10% >0.95
SAP-200W-286C 200W 100-277V 95-286V 500-1050mA 186*60*38 <10% >0.95
