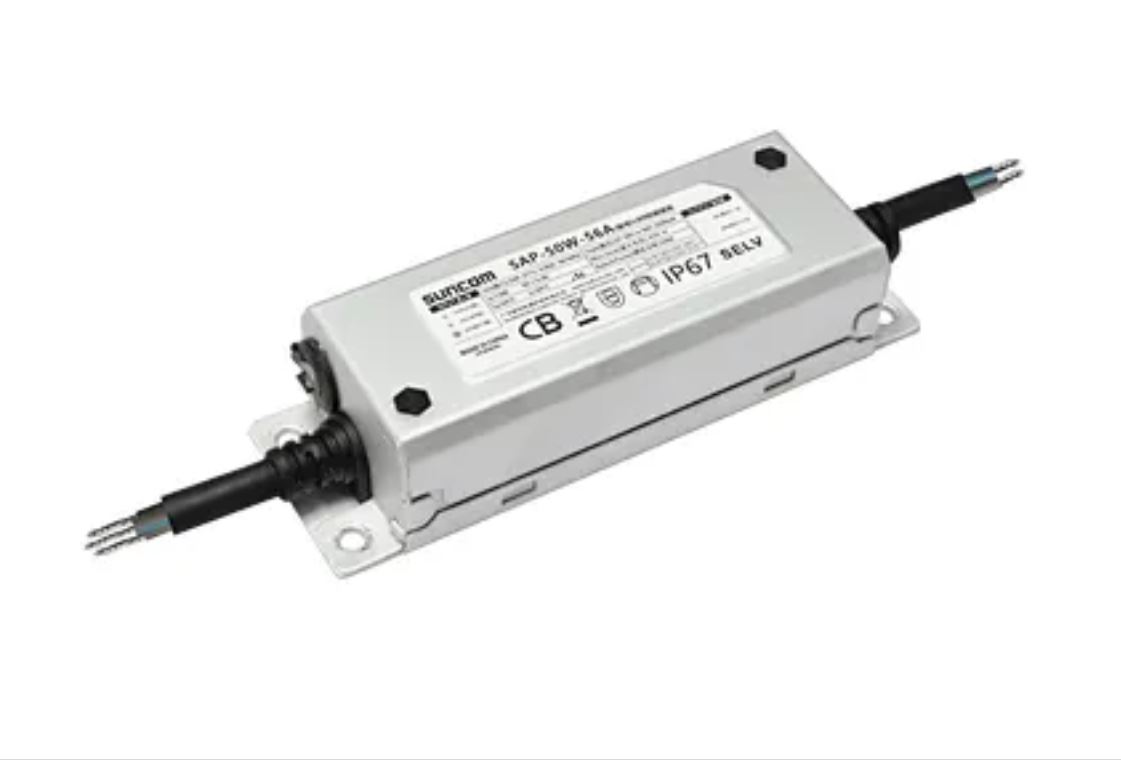

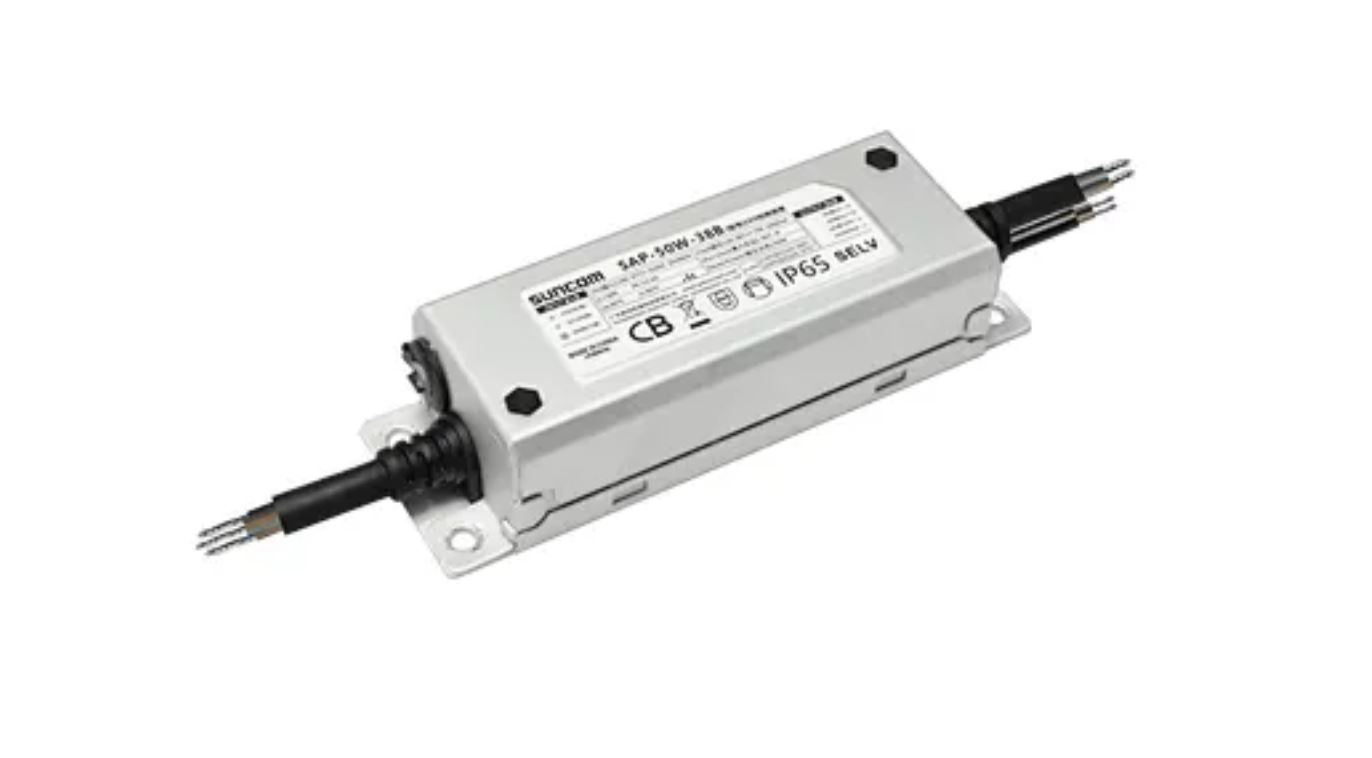

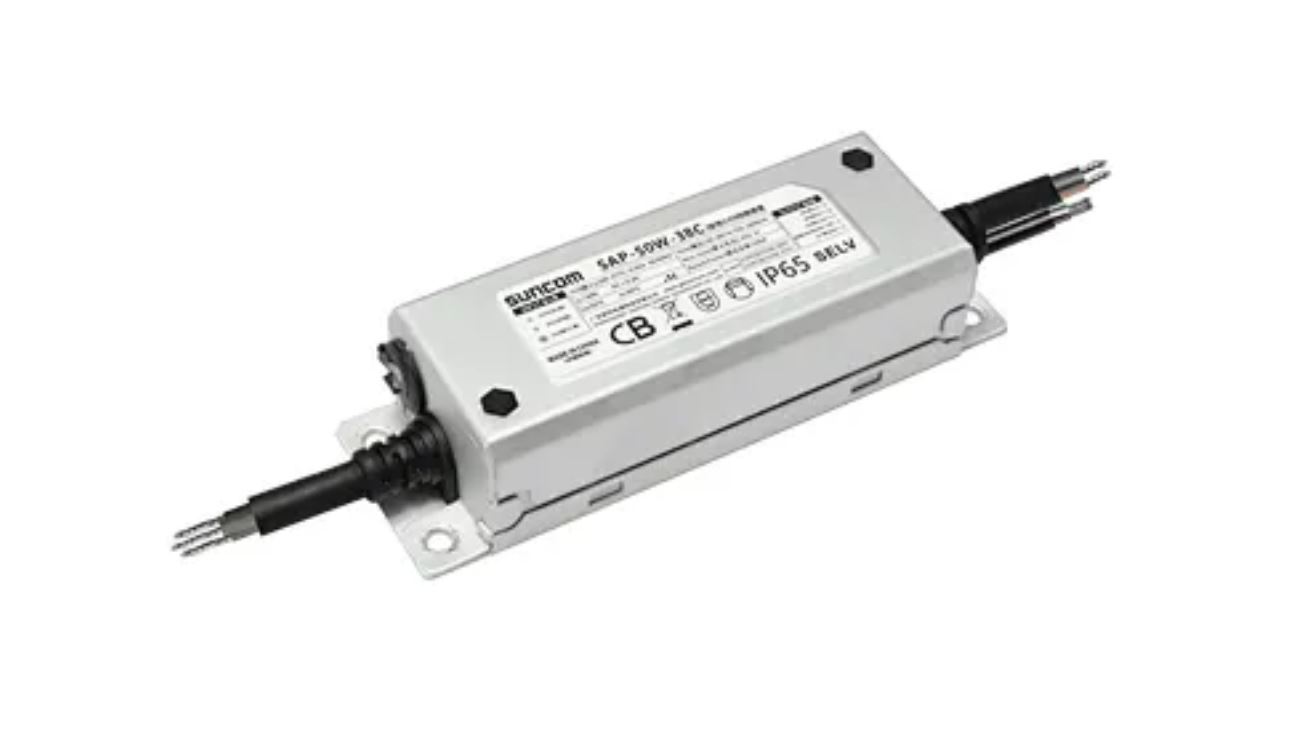

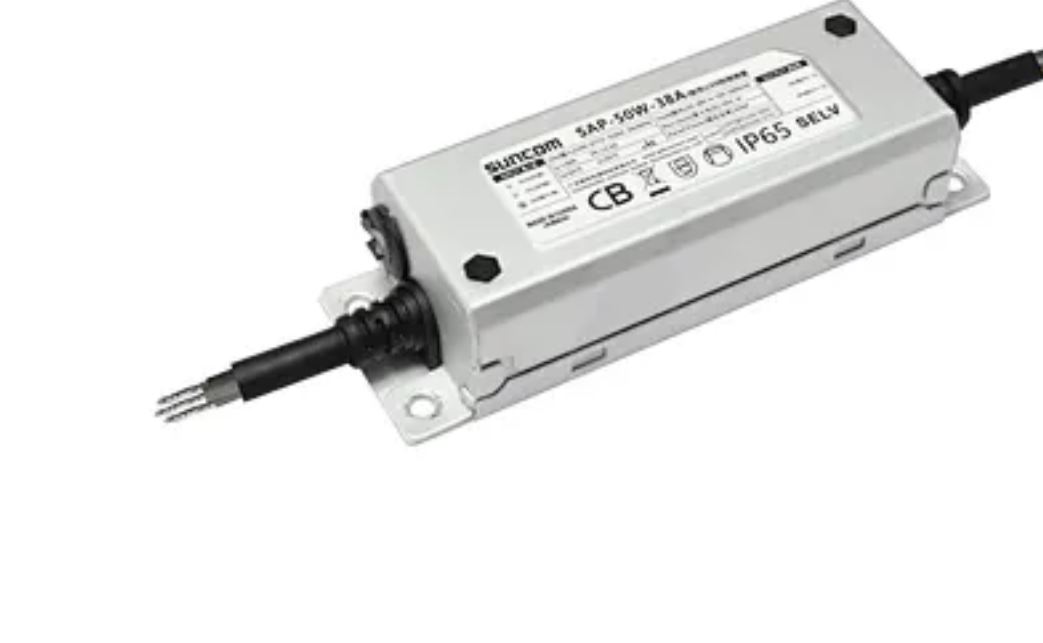

SAP 50W LED Driver

SAP-50W-38A,B,P, 56A,B,P, SAP-50W-72A,B,P

HVC 30W led driver is a led power supply constant current , specially designed for LED, with low harmonic (< 10%), high power factor(>0.95). Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection that greatly improve the safety and reliability of the product. Version: A-Adjustable potentiometer version B-Three-in-one dimming version P-Off-line programming dimming version

Descrição do produto

SAP 50W LED driver parameters

Input voltage: 100-277V

Output voltage: 20-38Vdc/27-56Vdc

Rated power: 50W

THD<10%/PF>0.95

Features of SAP 50W

Isolated, flicker free LED driver

Metal material case

Protections: Input UVP/OVP, out put OCP/SCP/OTP

Certifications:CB

Surge protection: 6/10KV

Efficiency: 92%

IP grade: IP65

5 years warranty

Input UVP: If the input voltage is lower than 90Vac, the power will be reduced by half; if the input voltage is lower than 80Vac, the power will be turned off, and the AC voltage will be restored after it returns to normal.

Input OVP: If the input voltage is higher than 330Vac, the power will be turned off, and the AC voltage will be restored after it returns to normal.

Applications

Street lighting, industrial lighting, highbay lighting,etc

Model list

Model	Rated power	Input voltage	Output voltage	Output current	Size	THD(Typ)	PF(Typ)
SAP-50W-38A	50W	100-277V	20-38V	750-1500mA	1264129	<10%	>0.95
SAP-50W-38B	50W	100-277V	20-38V	750-1500mA	1264129	<10%	>0.95
SAP-50W-38P	50W	100-277V	20-38V	750-1500mA	1264129	<10%	>0.95
SAP-50W-56A	50W	100-277V	27-56V	600-1200mA	1264129	<10%	>0.95
SAP-50W-56B	50W	100-277V	27-56V	600-1200mA	1264129	<10%	>0.95
SAP-50W-56P	50W	100-277V	27-56V	600-1200mA	1264129	<10%	>0.95
SAP-50W-72A	50W	100-277V	30-72V	500-1050mA	1264129	<10%	>0.95
SAP-50W-72B	50W	100-277V	30-72V	500-1050mA	1264129	<10%	>0.95
SAP-50W-72P	50W	100-277V	30-72V	500-1050mA	1264129	<10%	>0.95
