SCP 100W LED Driver
SCP 100W LED Driver - Image 2
SCP 100W LED Driver - Image 3
SCP 100W LED Driver - Image 4

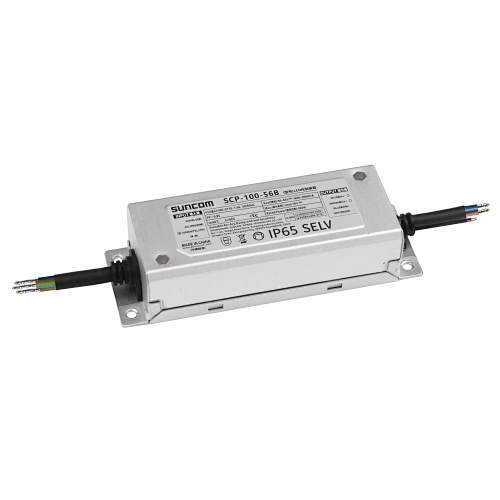

SCP 100W LED Driver

  • Modelo NO.
  • SCP-100-56A,B,C, SCP-100-90A,B,C
This product is a constant current drive power supply, Specially designed for LED, with low harmonic (<15%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product. Version: A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version（ Time-controlled dimming can be customized )

Descrição do produto

Our versatile range of lighting solutions includes high-quality options for a variety of applications such as street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, and plant lighting. For instance, our advanced 100W LED flood light driver and 100W LED light driver are specifically designed to cater to the needs of these diverse lighting scenarios. We also offer OEM led drivers, so feel free to contact us.
SCP 100W LED Light Driver Parameters
Input voltage: 100-277V Output voltage: 30-56V/56-90V Rated power: 100W THD＜15%/PF＞0.95
Features of SCP 100W LED Light Driver
Class I type for insulation
Isolation, constant current mode output
Efficiency up to 90.5%（Typ.）, measured at full load and 230Vac input Surge protection: 6/10KV IP65 Protection:  SCP/OVP/OTP Global certifications: CB (Compliant with SASO2927 street lamp standard) Dimming function: 3 in 1 dimming(dim-to-off): 0-10V dimming/PWM dimming/resistance dimming, 12/0.25A AUX power Working temperature: -40 ~ +60℃ (Typ.: 25℃) Maximum case temperature: 90℃
Storage temperature: -40~85℃ (Typ.: 25℃) Warranty:  5 years
Applications Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)
SCP-100-56A 100W 100-277V 30-56V 1600-3000mA 142*49*33mm <15% >0,95
SCP-100-56B 100-277V 30-56V 1600-3000mA 142*49*33mm <15% >0,95
SCP-100-56C 100-277V 30-56V 1600-3000mA 142*49*33mm <15% >0,95
SCP-100-90A 100-277V 56-90V 1200-23000mA 142*49*33mm <15% >0,95
SCP-100-90B 100-277V 56-90V 1200-23000mA 142*49*33mm <15% >0,95
SCP-100-90C 100-277V 56-90V 1200-23000mA 142*49*33mm <15% >0,95
