SCP 200W LED Driver

This product is a dimmable constant current LED power supply, specially designed for LED, with low harmonic (< 15%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product. Version A-Adjustable potentiometer version B-Three-in-one dimming version C-12V auxiliary power version（ Time-controlled dimming can be customized )

Descrição do produto

SCP 200W LED Driver Parameters

Input voltage: 100-277V Output voltage: 30-56V/56-90V Rated power: 200W Electrical performance parameters: THD＜15%/PF＞0.95

Features of SCP 200W LED Driver

Class I type for insulation

Isolation, constant current mode output

Dimmable constant current led power supply

Adjustable constant current led driver

Efficiency up to 91.5%（Typ.）, measured at full load and 230Vac input Surge protection: 6/10KV IP65 Protection: SCP/OVP/OTP Global certifications: CB (Compliant with SASO2927 street lamp standard) Dimming function: 3 in 1 dimming(dim-to-off) : 0-10V dimming/PWM dimming/resistance dimming, 12/0.25A AUX power Working temperature: -40 ~ 60℃ (Typ.: 25℃) Maximum case temperature: 90℃

Storage temperature:-40 ~ 85℃ (Typ.: 25℃) Warranty: 5 years

Application of SCP 200W LED Driver

Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting

Model list

Model	Rated Power	Input Voltage	Output Voltage	Outpot Current	Product Size	THD.(Typ)	PF.(Typ)
SCP-200-56A	200W	100-277V	30-56V	3000-6000mA	1866037mm	<15%	>0.95

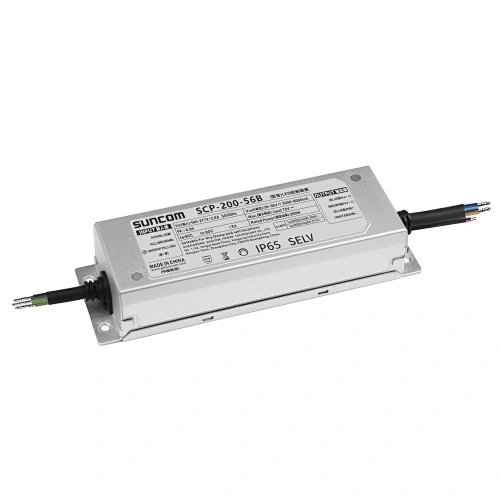

SCP-200-56B		100-277V	30-56V	3000-6000mA	1866037mm	<15%	>0.95
SCP-200-56C		100-277V	30-56V	3000-6000mA	1866037mm	<15%	>0.95
SCP-200-90A		100-277V	56-90V	1600-3000mA	1866037mm	<15%	>0.95
SCP-200-90B		100-277V	56-90V	1600-3000mA	1866037mm	<15%	>0.95
SCP-200-90C		100-277V	56-90V	1600-3000mA	1866037mm	<15%	>0.95

SCP-200W-XXX
