SCP 50W LED Driver

  • Modelo NO.
  • SCP-50-56A,B, SCP-50-90A,B
This product is a constant current drive power supply, specially designed for LED, with low harmonic (< 15%), high power factor. Output current can be flexibly adjusted according to the led lamp voltage. 3 in 1 dimming, built-in surge protection, output open-circuit, short-circuit protection, greatly improve the safety and reliability of the product. Version: A-Adjustable potentiometer version, B-Three-in-one dimming version

Descrição do produto

SCP 50W LED Street Light Driver Parameters
Input voltage: 100-277V Output voltage: 30-56V/56-90V Rated power: 50W Electrical performance parameters:  THD＜15%/PF＞0.95
Features of SCP 50W LED Street Light Driver
Class I type for insulation
Isolation power supply
constant current mode output
Efficiency up to 89.3%（Typ.） Surge protection:  6/10KV IP65 Protection:  SCP/OVP/OTP Global certifications: CB (Compliant with SASO2927 street lamp standard) Dimming function: 3 in 1 dimming(dim-to-off): 0-10V dimming/PWM dimming/resistance dimming Working temperature: -40 ~ +60℃ (Typ.: 25℃) Maximum case temperature: 90℃
Storage temperature: -40~85℃ (Typ.: 25℃) Warranty:  5 years
Applications of SCP 50W LED Street Light Driver
Street lighting, industrial lighting, stadium lighting, floodlight lighting, landscape lighting, plant lighting
Model list
Model Rated Power Input Voltage Output Voltage Outpot Current Product Size THD.(Typ) Pf.(Typ)

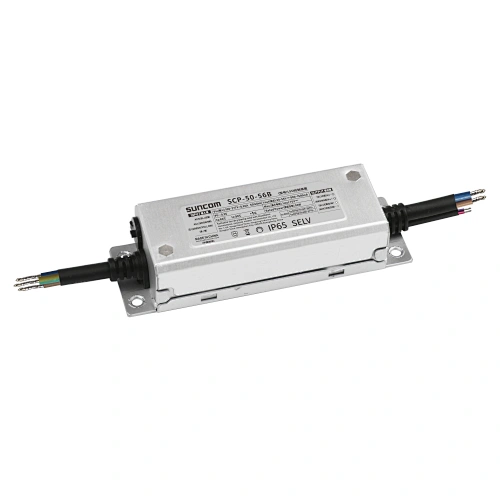

SCP-50-56A 50W 100-277V 30-56V 800-1500mA 126*41*29mm <15% >0.95
SCP-50-56B 100-277V 30-56V 800-1500mA 126*41*29mm <15% >0.95

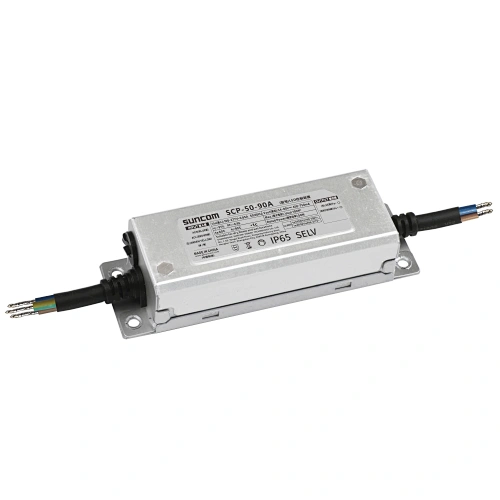

SCP-50-90A 100-277V 56-90V 450-750mA 126*41*29mm <15% >0.95
SCP-50-90B 100-277V 56-90V 450-750mA 126*41*29mm <15% >0.95
